Honeywell
1
1 INTRODUCTION
PRODUCT DESCRIPTION
VideoBloX is a range of compatible building blocks for use in video surveillance and
monitoring systems. An entire system would consist of a suitable mix of the following
components / modules:

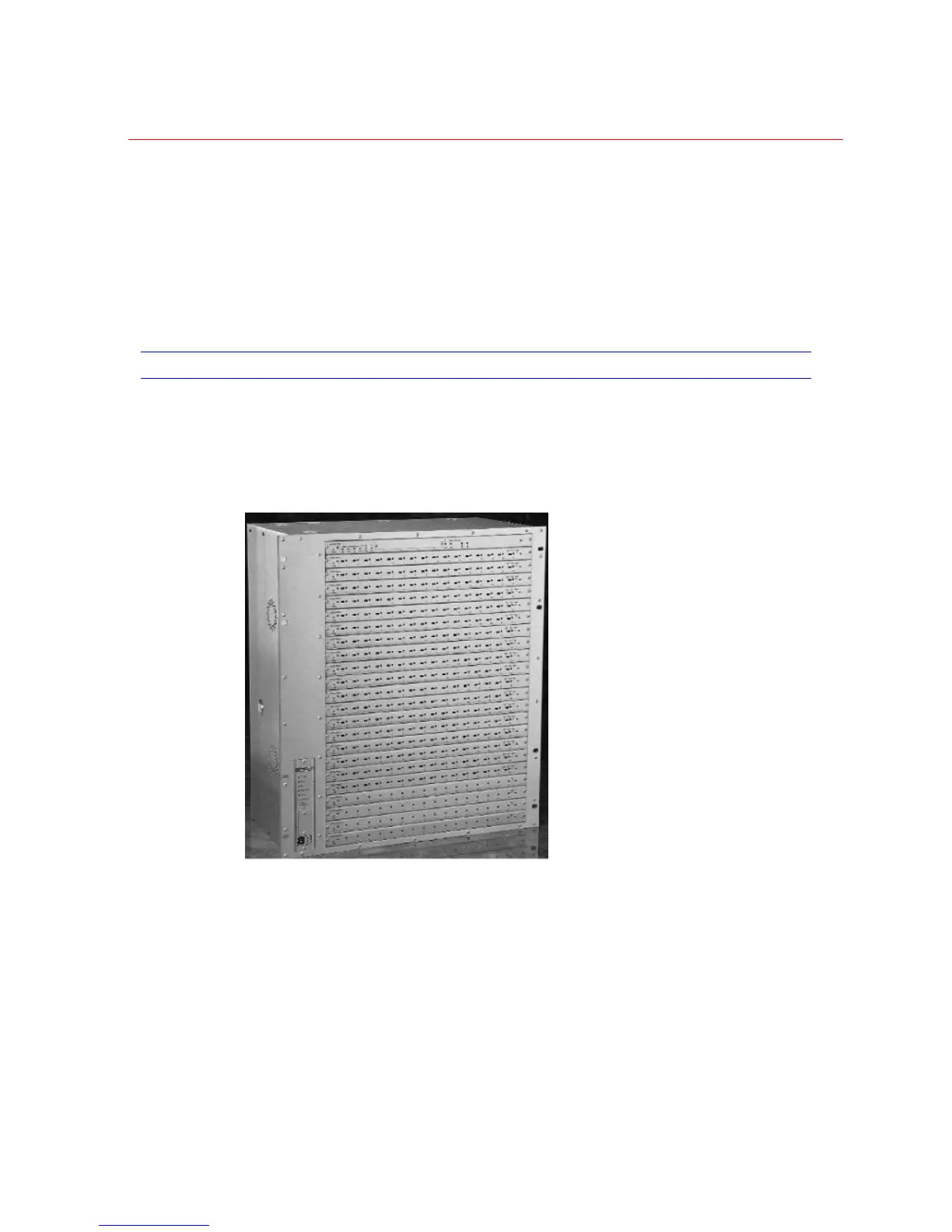

Figure 1-1 Front view of VB Chassis
• Matrix chassis which are supplied along with built in power supply units. These
chassis are available in industry standard 19-inch 2U, 4U, 8U and 12U rack
mount enclosures. The 2U chassis is powered by a low voltage power supply,
while all other chassis may be powered from low voltage supply or main input
power supply.
• VideoBloX CPU module. This card contains a high speed embedded
microprocessor and the required support circuitry and is used to control the entire
system.
• Video input modules. These provide protection and signal conditioning for 16
video inputs as well as matrix switching of these inputs. All video inputs to the
system are via these modules.
