Honeywell VideoBloX User Manual

APPENDIX B: Backward Compatible Application
146
Interface new output and titled output module with old system
Honeywell’s VideoBloX output and titled output module provides changeable plug-in
board to do backward compatibility.

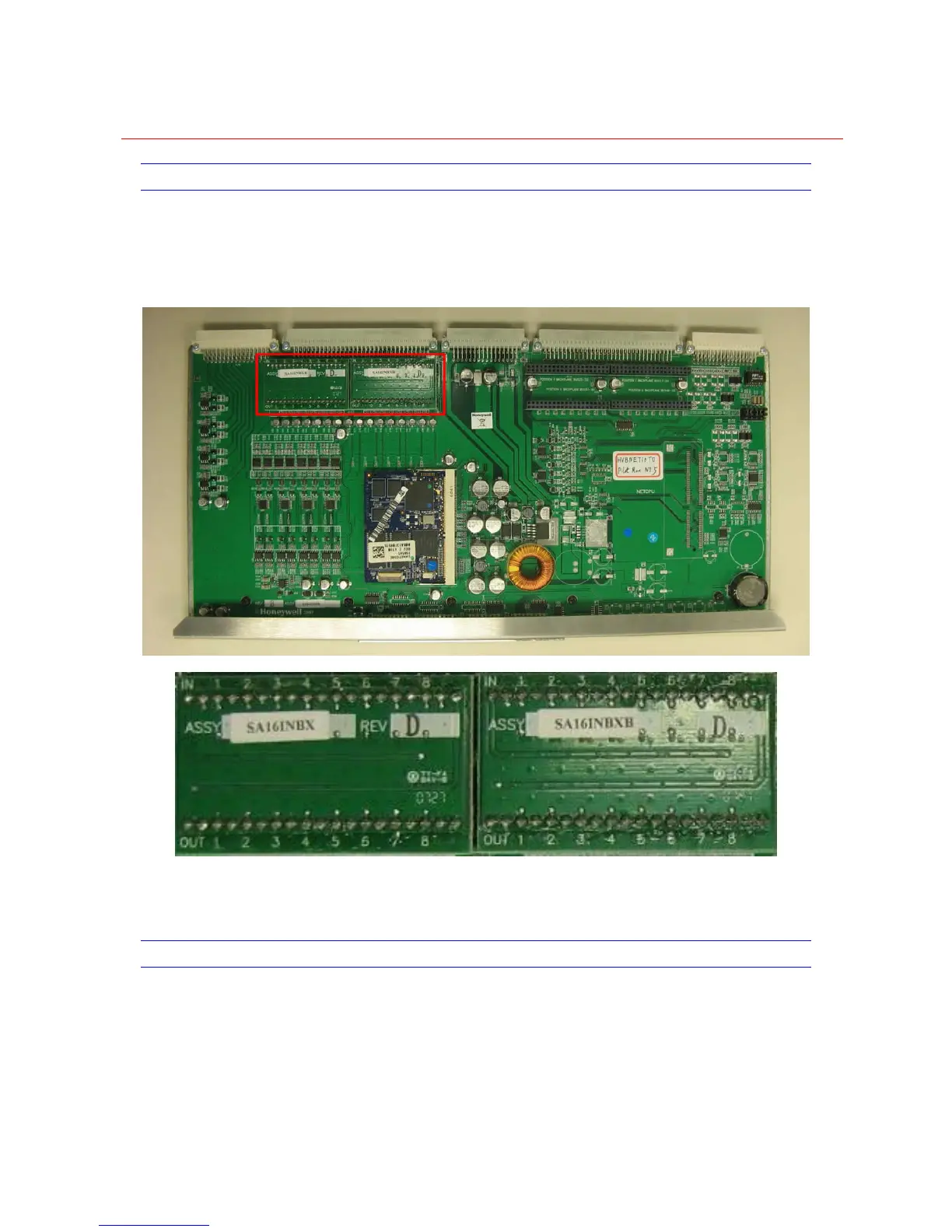

Figure 6-2 Buffer board of HVBNET16TO
There are two kinds of buff board for HVBNET16TO, SA16INBX and SA16INBXB, if the
system has the original VB input board, the SA16INBXB should be plugged.
Interface new CPU module with old system
Honeywell’s VideoBloX CPU module provides backward compatibility without any
modification needed.
