VideoBloX MODULES
28

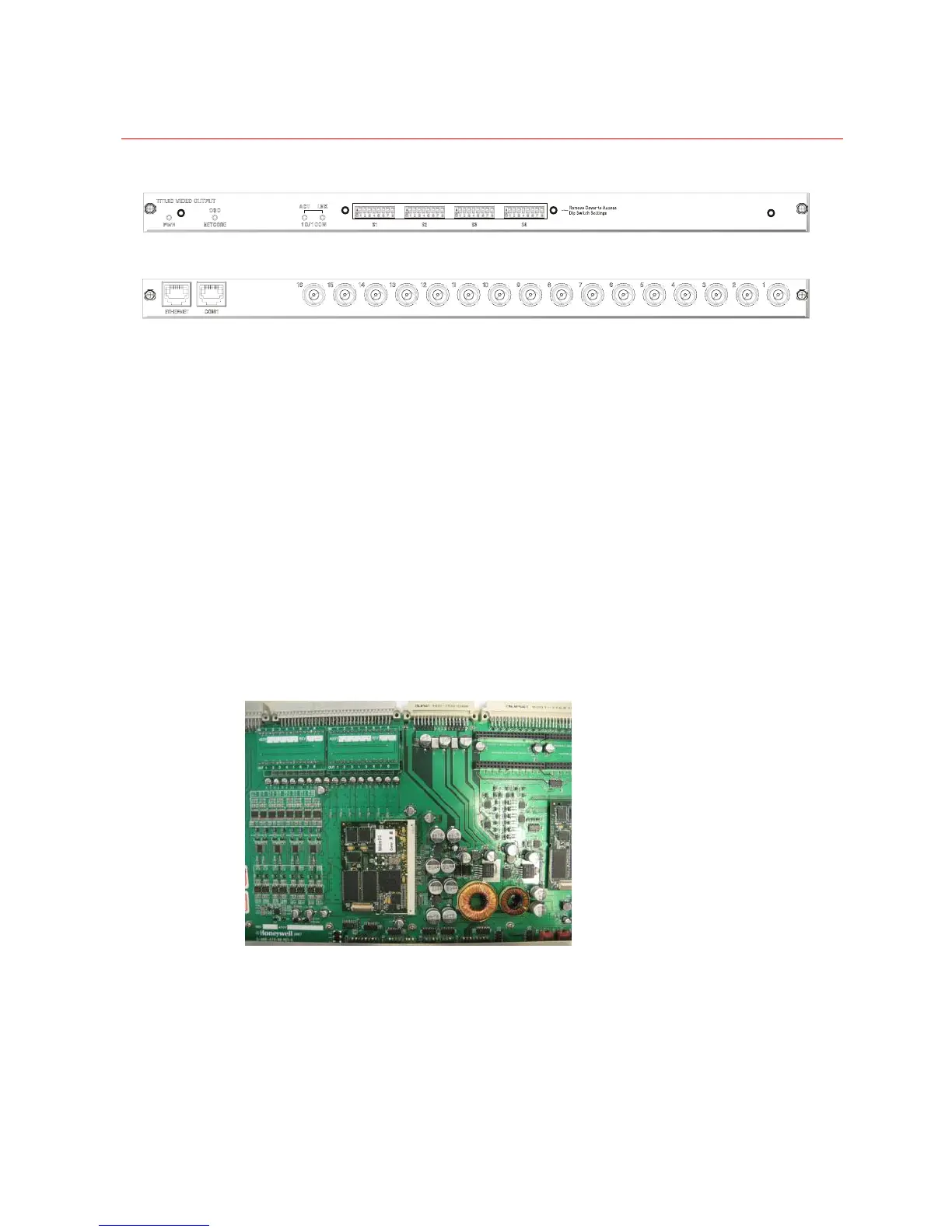

Figure 2-34 the Titled Video Output Module – Front View
Figure 2-35 the Titled Video Output Module – Rear View
The titled output module has following features:
• 40 characters by 16 lines text (PAL) or 40 characters by 13 lines text (NTSC)
generation capability.
• Font fringe design to let the OSD suit different brightness environment.
• Built in real time clock.
• Firmware is upgradeable using web browsing.
• Non-volatile RAM with Lithium standby battery to store camera titles in ca se of
power loss. The camera titles are stored in the output card and the CPU.
• Limited protection against over-voltages, such as those induced by a nearby
lightning strike.
DIP Switch Settings
The output cards use a daughter board to set the output range (i.e. monitor 1-16 or 17-32,
etc.). Refer to DIP Switch Settings in NETCPU & NETOSD MODULE section on page 8.
Figure 2-36 Output Position Selections
To Next Page
