Honeywell VideoBloX User Manual

Honeywell
35

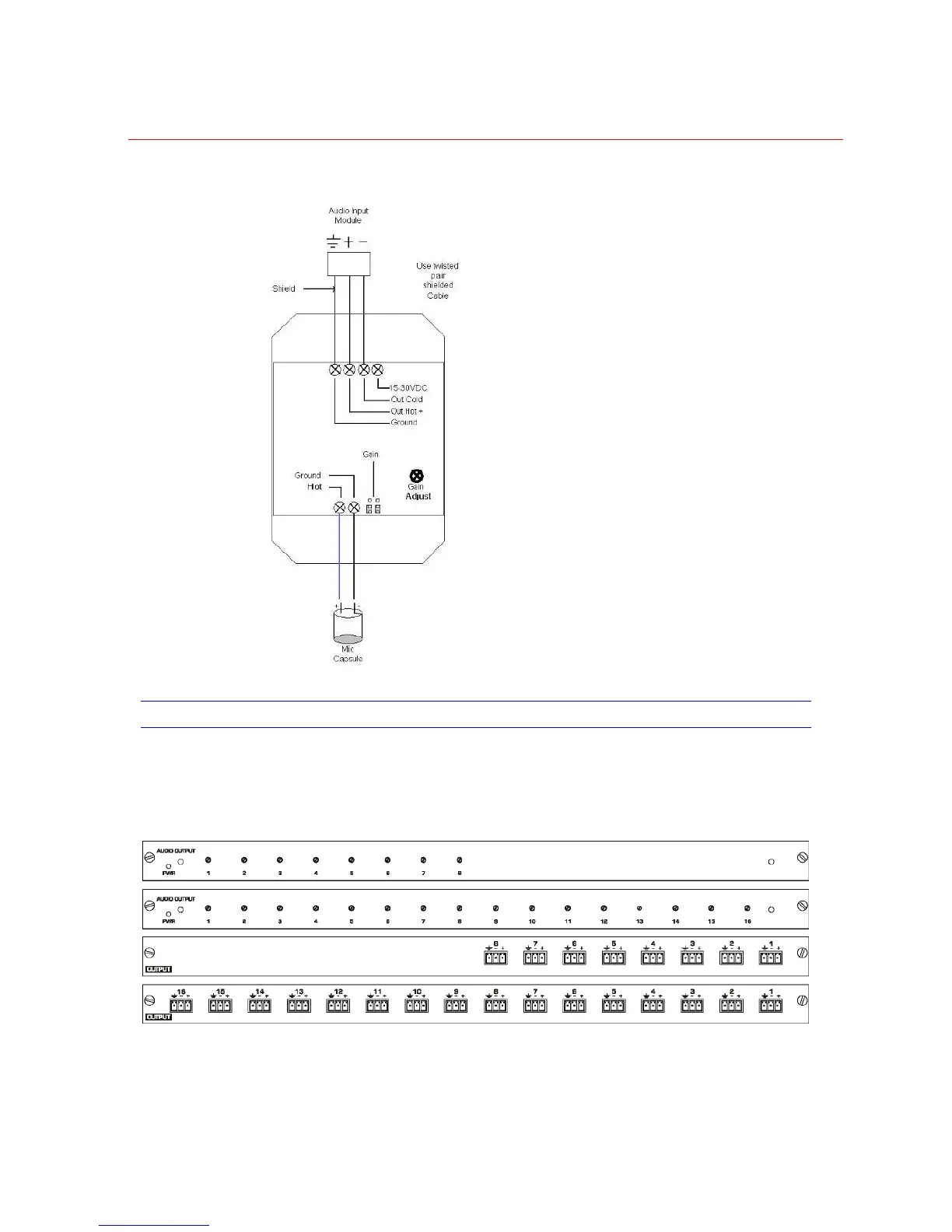

Figure 2-49 Diagram of Connecting a Microphone
AUDIO OUTPUT MODULE
The audio output module provides 16 audio output signals from the VideoBloX chassis.
Each of the outputs is associated with one of the 64 backplane channels.
Figure 2-50 Front and Rear Views of 8 and 16 Channel Audio Output Modules
VideoBloX audio output module has following features:
• Front panel accessible gain adjustment
