Honeywell VideoBloX User Manual

SYSTEM CONFIGURATION
62

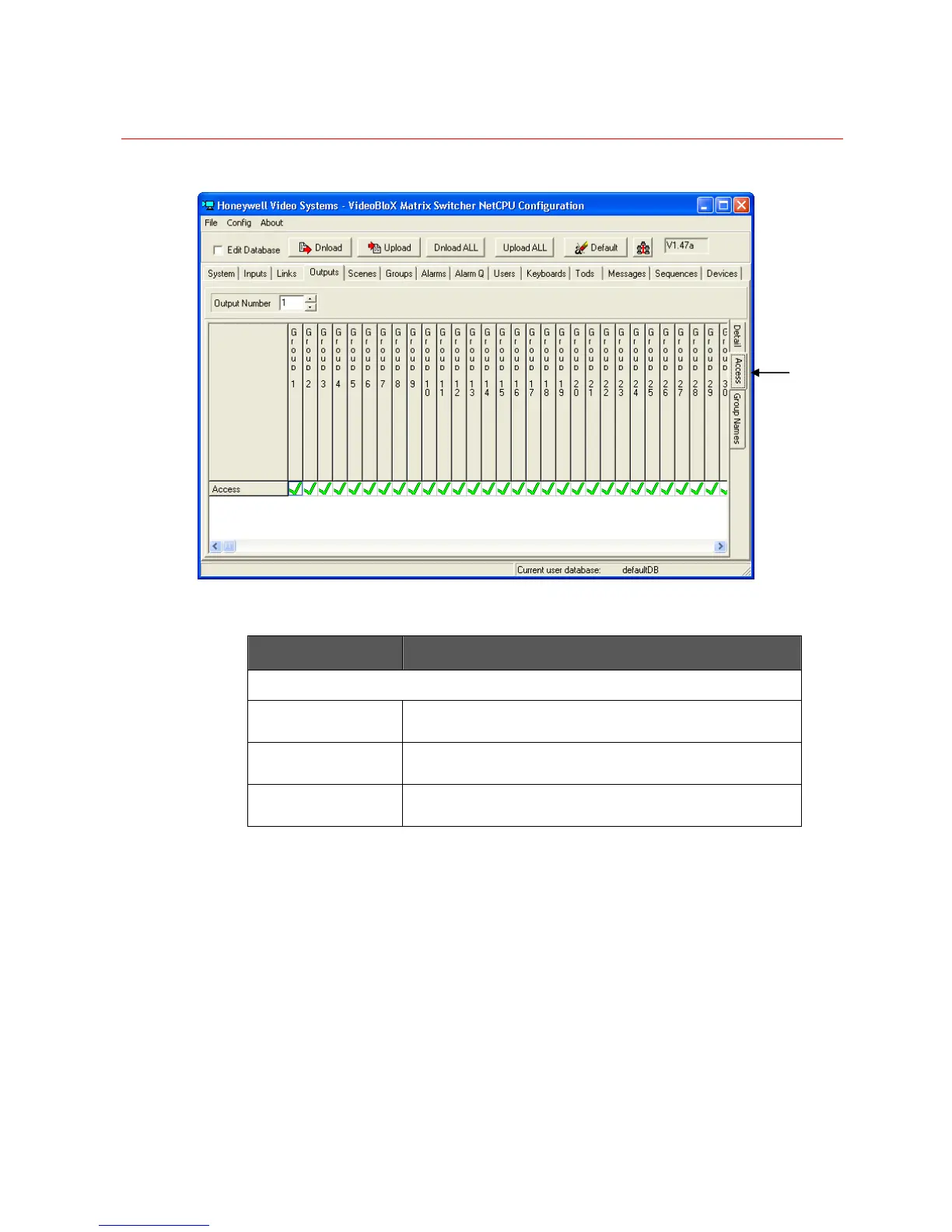

Figure 3-14 Outputs – Access Configuration
Field Definitions
Field Description
HEADING
Output Number Number assigned to the video output being configured.
Carries over from Outputs Detail window.
GROUP NAME
(COLUMN)
Available groups (up to 128, as defined on the Outputs
Group Name tab) are displayed in columns.
OUTPUT ACCESS
(ROW)
Indicates the groups in which the output is included /
excluded.
Steps for Configuring Output Access
Set access for each video output using the following methods:
• Click on the Access button to include this output / exclude this output from ALL
groups.
(Include = 9 / Exclude = U). Click on the Access button again to toggle between
include/exclude settings.
• Click on a Group column or on an individual cell (in the Access row) on the table
to include this output in / exclude this output from the particular group. (Include =
9 / Exclude = U). Click on the Group again to toggle between include/exclude
settings.
