Honeywell VideoBloX User Manual

SYSTEM CONFIGURATION
50

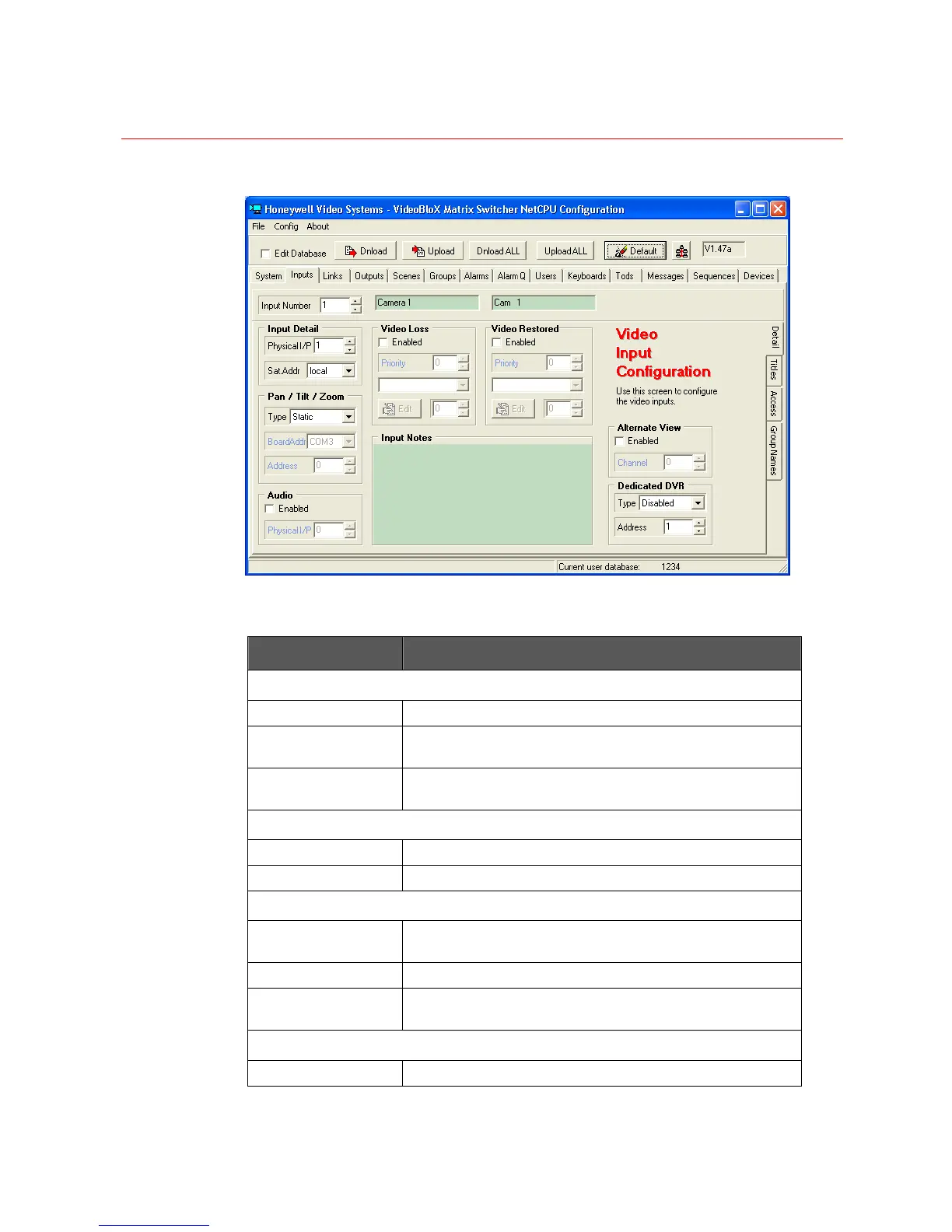

Figure 3-8 Inputs – Detail Configuration
Field Definitions
Field Description
HEADING
Input Number Number assigned to the video input being configured.
Camera Name Camera title associated with this video input. (see Input
Title ).
Camera Short Name Abbreviated camera title associated with this video input.
(see Input Title).
INPUT DETAIL
Physical IP Physical input connection to the matrix (BNC connector).
Set. Addr For use in future software release.
PAN / TILT / ZOOM
Type Type of Video Source attached to this input (Static, PTZ, and
UTC).
Board Addr The board Addr of GPIO board.
PTZ Address Physical address of PTZ camera.
(Active only if PTZ was selected for input Type.)
AUDIO
Enabled Selects whether there is an audio input associated with this
