VideoBloX MODULES
36
• Balanced (differential) signal output.
• Limited protection against over-voltages, such as those induced by a nearby
lightning strike.
The output module has a range of jumpers which are populated to determine which group
of 16 audio outputs the module receives from the backplane.
WARNING: The user should not modify these jumpers. The audio
output cards should be ordered for specific output channels.
CHASSIS INTERLINK INPUT AND OUTPUT MODULE
The Chassis Interlink Input and Output Modules allow multiple chassis to be connected
together, increasing the number of inputs of a matrix switching system.

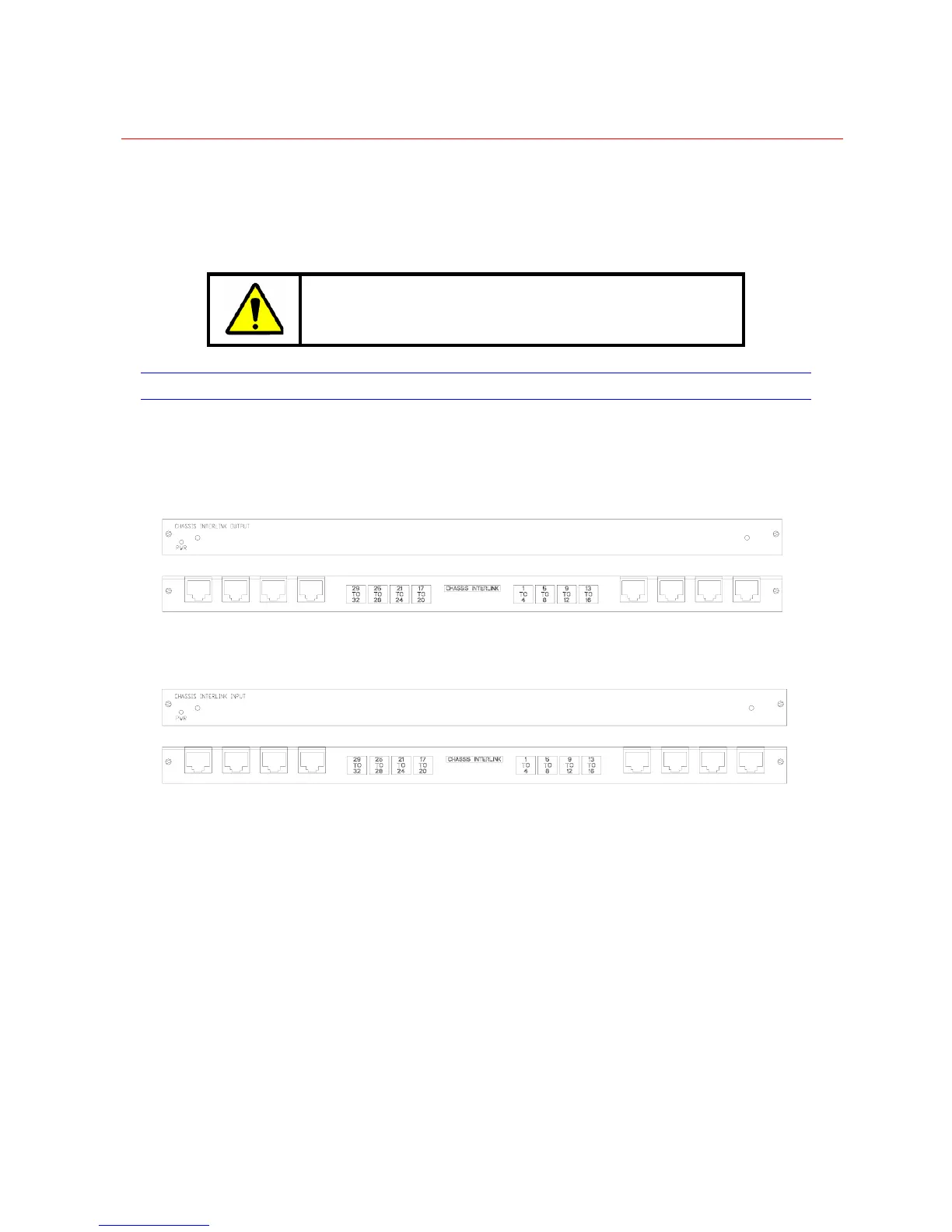

Figure 2-51 Chassis Interlink Output Module
Figure 2-52 Chassis Interlink Input Module
Input and Output Interlink modules have the following features:
• 32 input /output channels, allowing for high density interconnects.
• Balanced video driver and receivers allow high quality twisted pair connections
for video.
The “Main” chassis of a matrix is that which incorporates the video output modules, which
connect to video monitors. All other chassis are “Sub-Racks”, which uses interlink
modules to connect their backplane signals to the main chassis.
There are no adjustments or DIP switches on the interlink output module. User
configurable jumpers allow this module to be available in two options, channel 1 to 32
and channel 33 to 64. Should a matrix be expanded to more than 64 outputs, these two
options are still used and refer to the backplane channels within each sub-rack. Interlink
outputs are connected to interlink inputs in the main chassis by means of cables with
RJ45 connectors, each carrying 4 signals.
