APPENDIX A: VideoBloX Chassis Interlink Expansion
142
Figure 5-6 HVB32LKO Jumper Setting
2. Install 1 x HVB32LKO for channel 1
– 32; 1 x HVB32LKO for channel 33 - 64 into 1
ST
Slave chassis.
3. Install 1 x HVB32LKO for channel 1
– 32; 1 x HVB32LKO for channel 33 - 64 into 2
nd
Slave chassis.
HVB32LKI Jumper and Dip Switch Setting
1. There are two options, channel 1 to 32 and channel 33 to 64 jumper setting for
HVB32LKI. Place the jumper in position A and position B to configure channel 1 to 32
and 33 to 64.
2 x HVB32LKI for channel 1 -
32, 2 x HVB32LKI for channel 33 – 64.

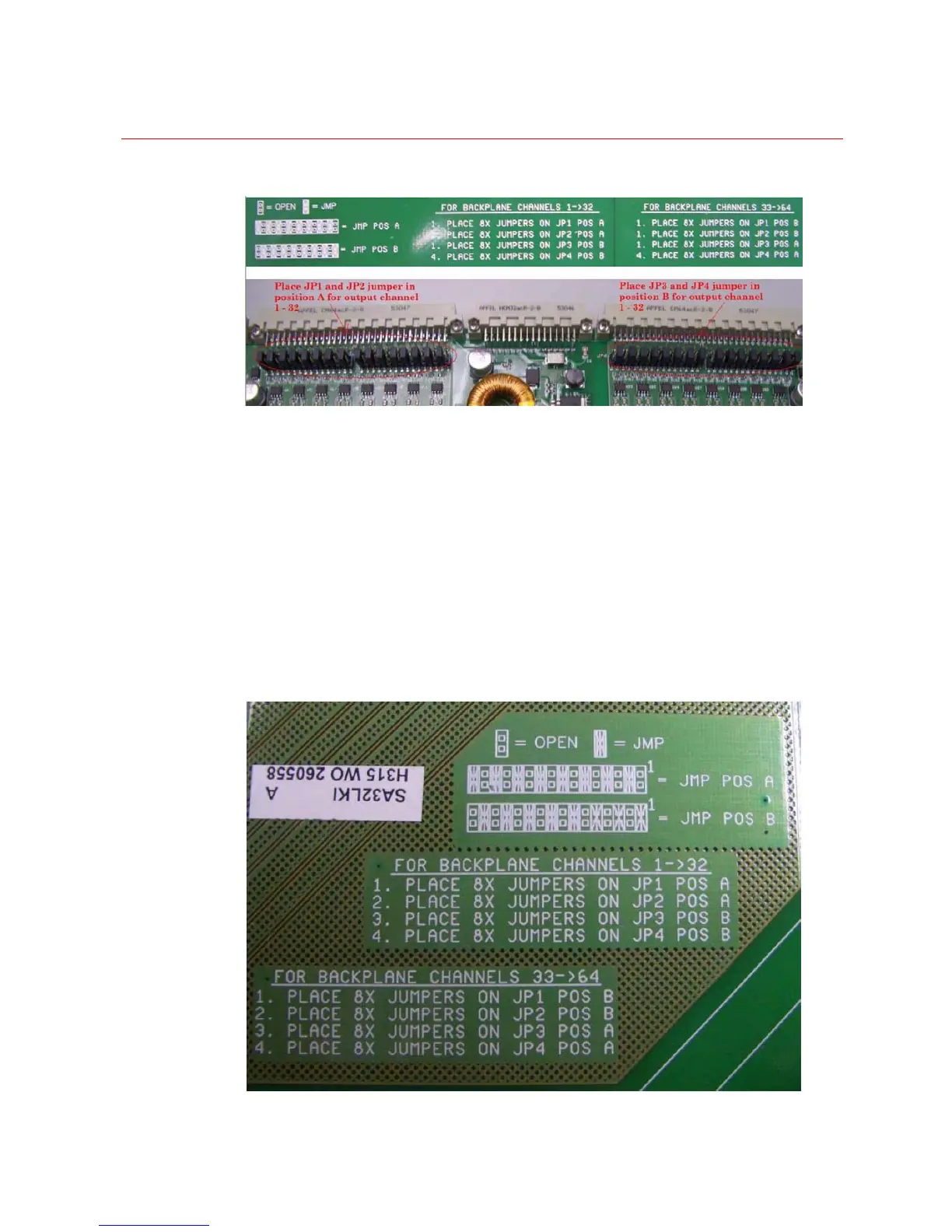

Figure 5-7 HVB32LKI Jumper and Dip Switch Setting
