Honeywell VideoBloX User Manual

Honeywell

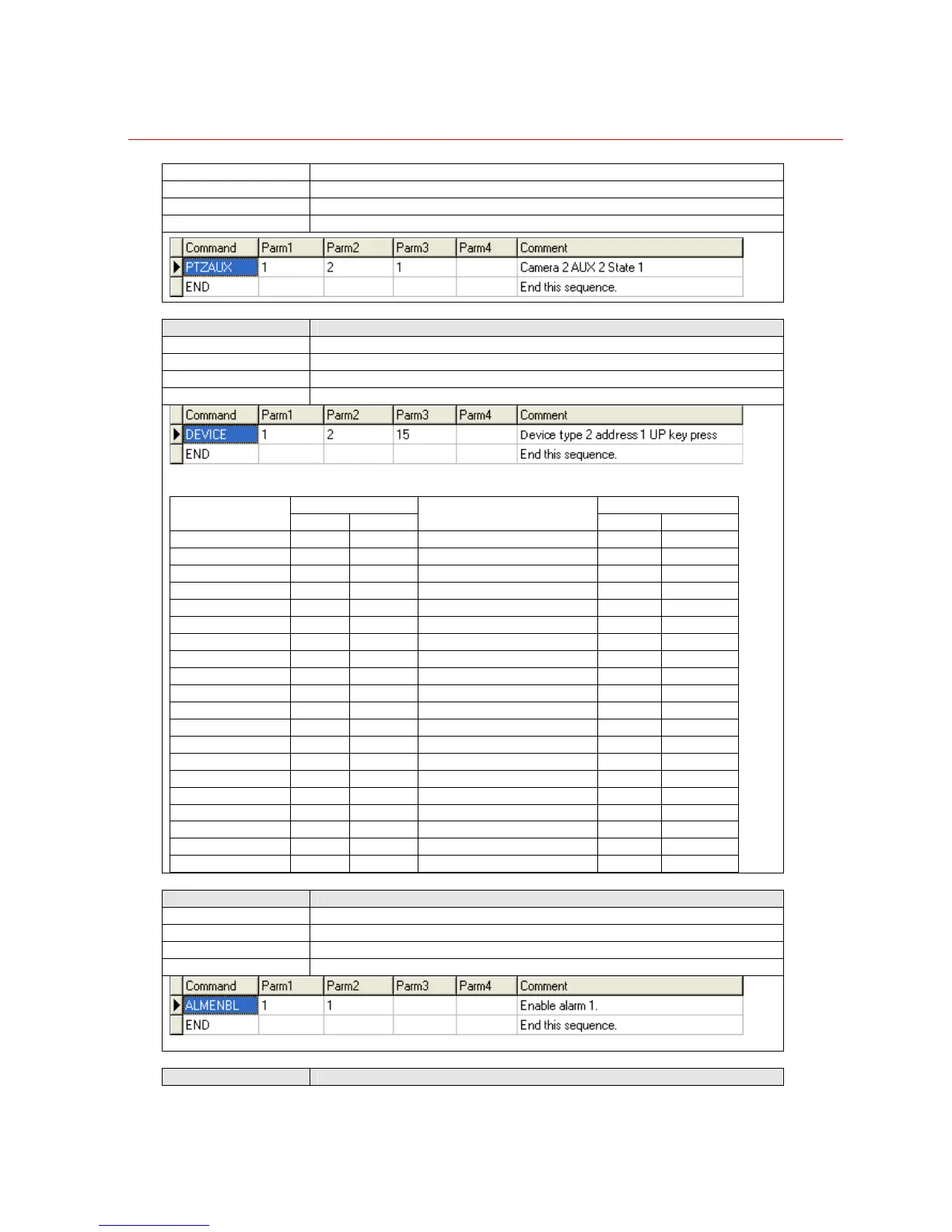

157
Parm1 PTZ input channel number
Parm2 Auxiliary number
Parm3 Auxiliary state
Parm4 N/A
DEVICE
Operate RS232 device
Parm1 Device number / address
Parm2 Device Type / definition #
Parm3 Device function
Parm4 N/A
Note: Device function:
Key press and release list:
Function number Function number
Name
Press Release
Name
Press Release
UP key 15 143 USER key 1 32 160
DOWN key 16 144 USER key 2 33 161
LEFT key 17 145 USER key 3 34 162
RIGHT key 18 146 USER key 4 35 163
Function key 1 48 176 Extend Function key 1 64 192
Function key 2 49 177 Extend Function key 2 65 193
Function key 3 50 178 Extend Function key 3 66 194
Function key 4 51 179 Extend Function key 4 67 195
Function key 5 52 180 Extend Function key 5 68 196
Function key 6 53 181 Extend Function key 6 69 197
Function key 7 54 182 Extend Function key 7 70 198
Function key 8 55 183 Extend Function key 8 71 199
Function key 9 56 184 Extend Function key 9 72 200
Function key 10 57 185 Extend Function key 10 73 201
Function key 11 58 186 Extend Function key 11 74 202
Function key 12 59 187 Extend Function key 12 75 203
Function key 13 60 188 Extend Function key 13 76 204
Function key 14 61 189 Extend Function key 14 77 205
Function key 15 62 190 Extend Function key 15 78 206
Function key 16 63 191 Extend Function key 16 79 207
ALMENBL
Enable alarm input
Parm1 Alarm number
Parm2 Required state
Parm3 N/A
Parm4 N/A
Note: Required state: 1, enable; 0, disable.
TODENBL
Enable time of day event
