122

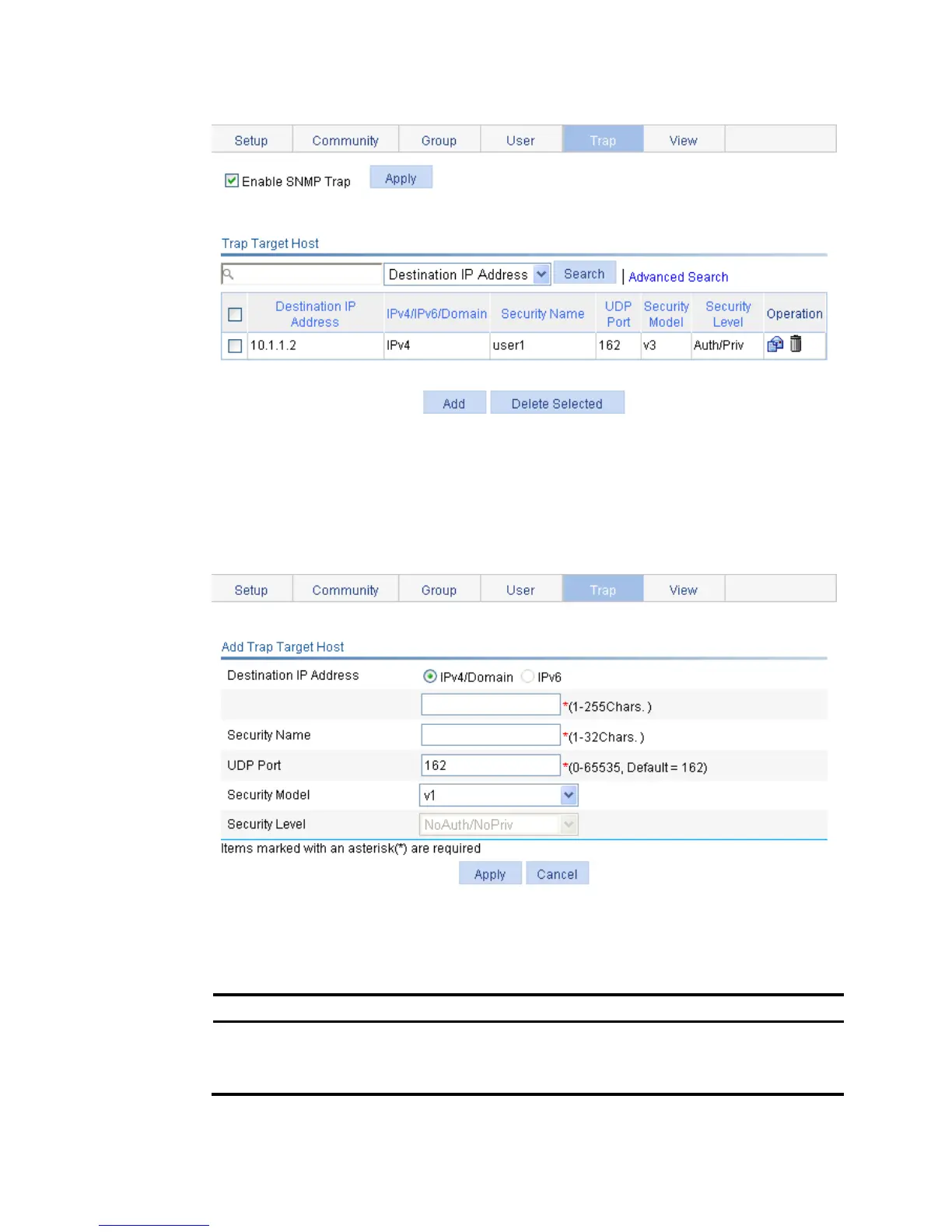

Figure 112 Traps configuration
3. Select Enable SNMP Trap.
4. Click Apply to enable the SNMP trap function.
5. Click Add.
The page for adding a target host of SNMP traps appears.
Figure 113 Adding a target host of SNMP traps
6. Configure the settings for the target host as described in Table 38.
7. Click Apply.
Table 38 Configuration items
Item Descri
Destination IP Address
Set the destination IP address.
Select the IP address type: IPv4 or IPv6, and then type the corresponding IP
address in the field according to the IP address type.
