Verifying the configuration
1. When the preceding configurations are completed, the OUI Summary tab is displayed by default,
as shown in Figure 159. You
can view the information about the newly-added OUI address.

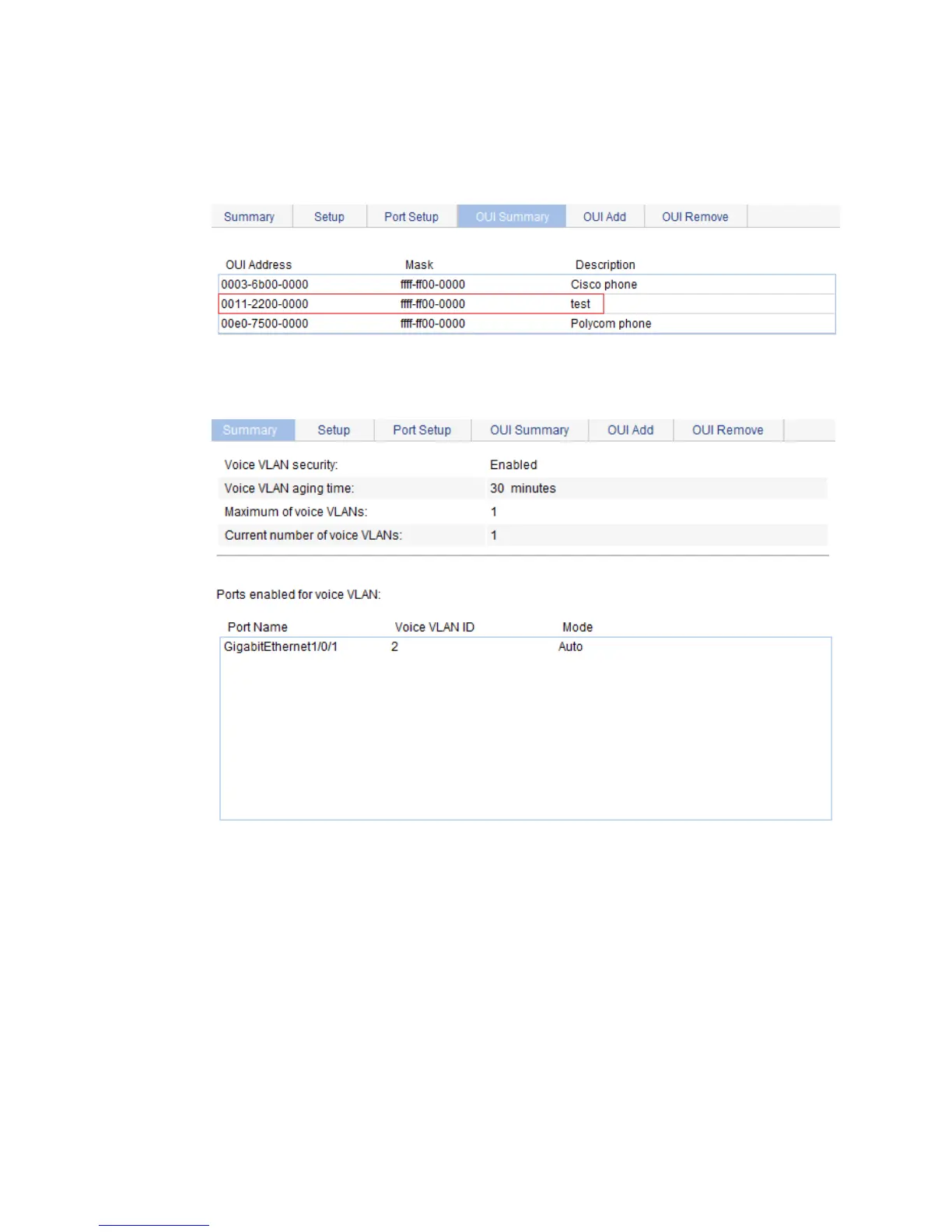

Figure 159 Displaying the current OUI list of the device
2. Click the Summary tab, where you can view the current voice VLAN information.
Figure 160 Displaying voice VLAN information
Configuring a voice VLAN on a port in manual voice VLAN
assignment mode
Network requirements
As shown in Figure 161:
• Configure VLAN 2 as a voice VLAN that carries only voice traffic.
• The IP phone connected to hybrid port GigabitEthernet 1/0/1 sends untagged voice traffic.
• GigabitEthernet 1/0/1 operates in manual voice VLAN assignment mode and allows voice
packets whose source MAC addresses match the OUI addresses specified by OUI address
To Next Page
