168
0011-2200-0000 and mask ffff-ff00-0000 to pass through. The description of the OUI address entry
is test.

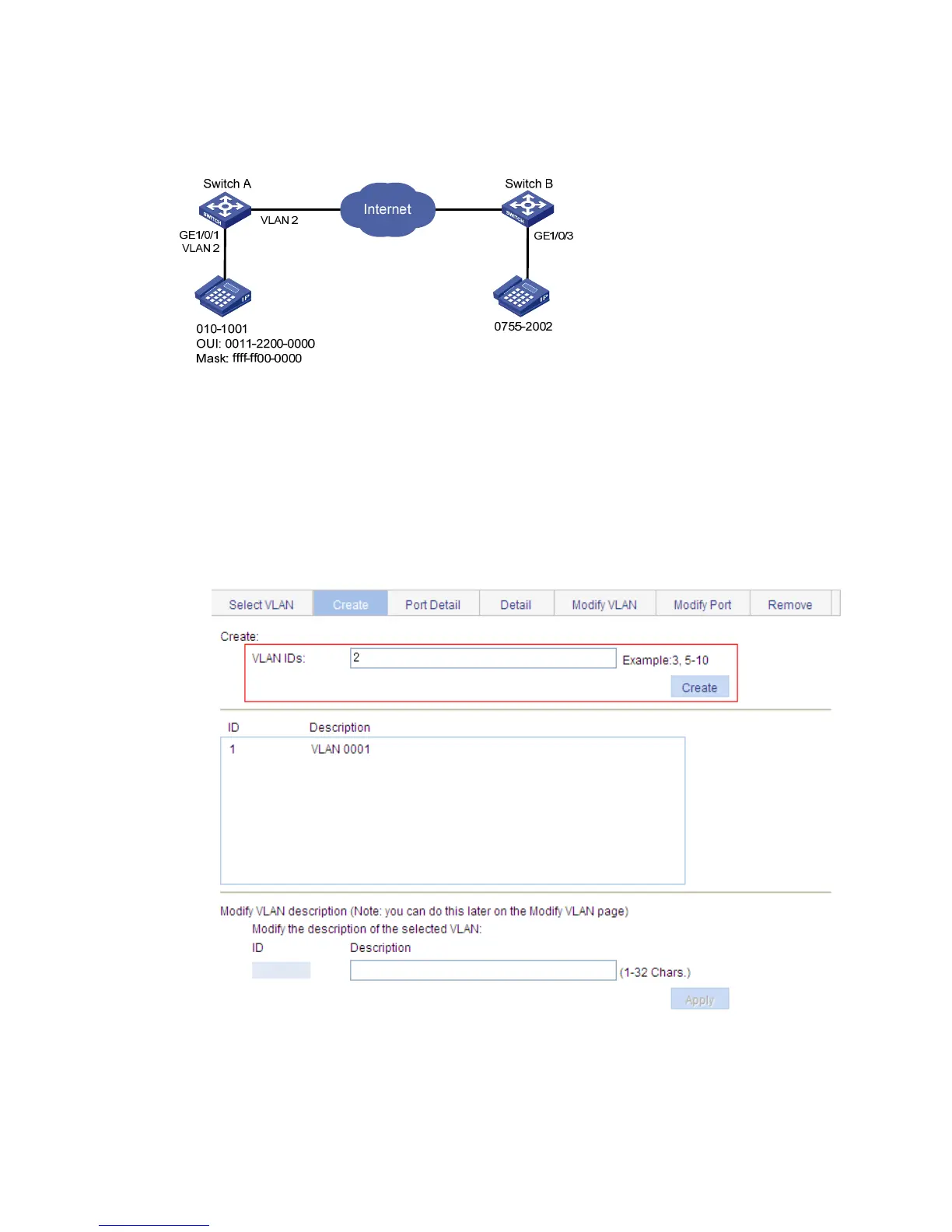

Figure 161 Network diagram
Configuring Switch A
1. Create VLAN 2:
a. Select Network > VLAN from the navigation tree.
b. Click the Create tab.
c. Enter VLAN ID 2.
d. Click Create.
Figure 162 Creating VLAN 2
2. Configure GigabitEthernet 1/0/1 as a hybrid port and configure its PVID as VLAN 2:
a. Select Device > Port Management from the navigation tree.
b. Click the Setup tab.
c. Select Hybrid from the Link Type list.
