HP 1920 Gigabit Ethernet Switch Series User Manual

200

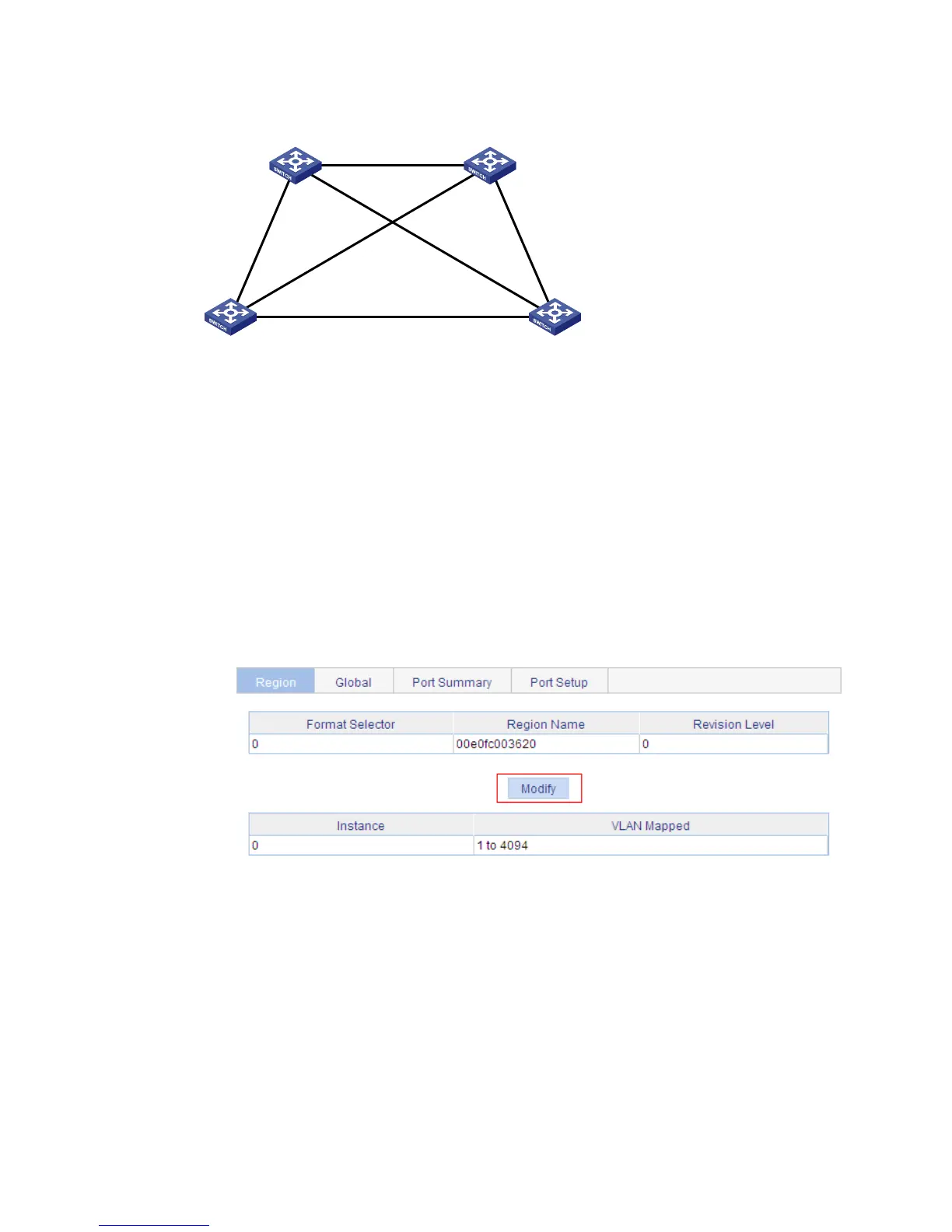

Figure 183 Network diagram
"Permit:" next to a link in the figure is followed by the VLANs the packets of which are permitted to pass
this link.
Configuration procedure
Configuring Switch A
1. Configure an MST region:
a. From the navigation tree, select Network > MSTP.
By default, the Region tab is displayed.
b. Click Modify.
Figure 184 The region tab
c. Set the region name to example.
d. Set the revision level to 0.
e. Select Manual.
f. Select 1 from the Instance ID list.
g. Set the VLAN ID to 10.
h. Click Apply.
The system maps VLAN 10 to MSTI 1 and adds the VLAN-to-instance mapping entry to the
VLAN-to-instance mapping list.
i. Repeat the preceding three steps to map VLAN 20 to MSTI 2 and VLAN 30 to MSTI 3 and add
the VLAN-to-instance mapping entries to the VLAN-to-instance mapping list.
Permit: all VLAN
Permit:
VLAN 20, 40
Permit:
VLAN 10, 40
Permit: VLAN 30, 40
Permit:
VLAN 20, 40
Permit:
VLAN 10, 40
Switch A Switch B
Switch C Switch D
