HP 1920 Gigabit Ethernet Switch Series User Manual

433

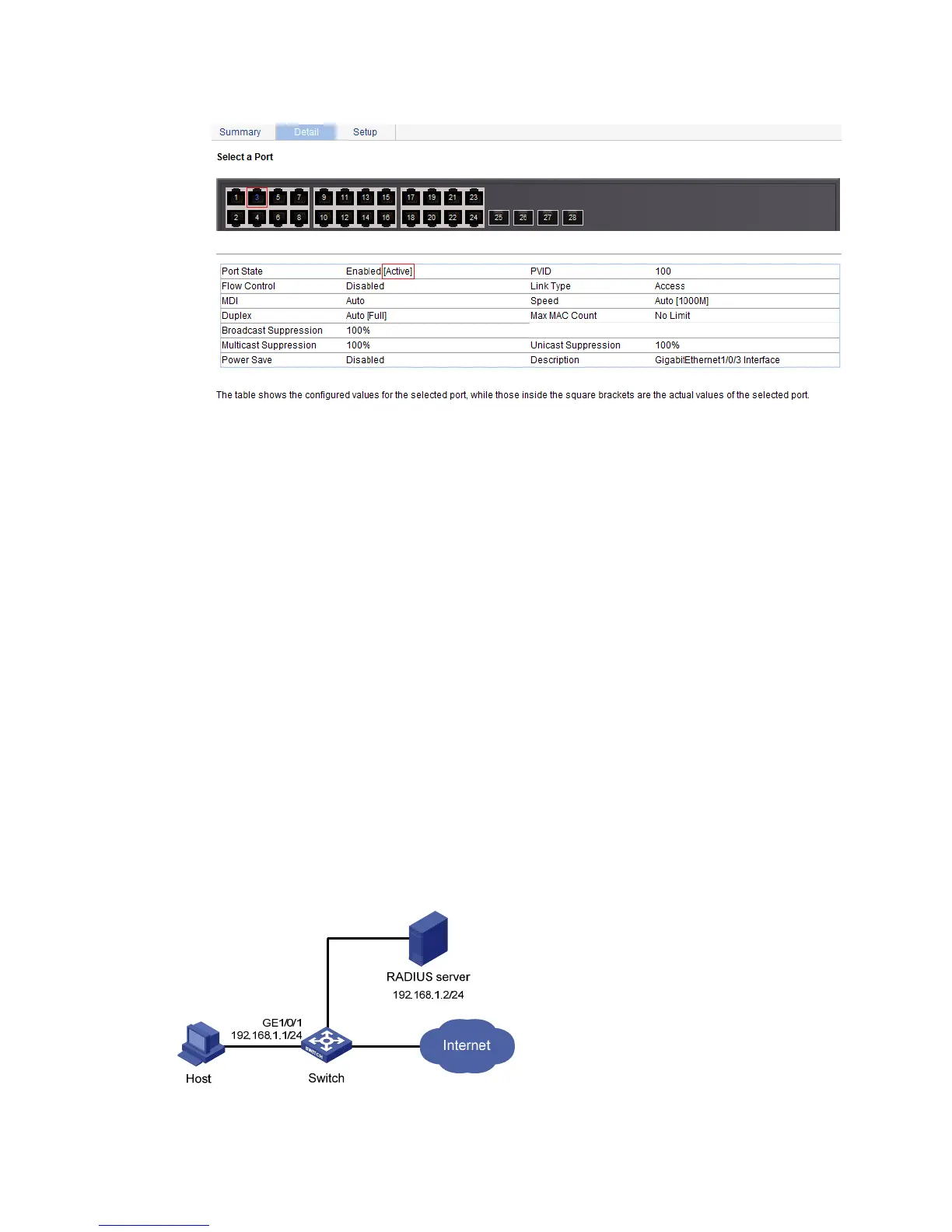

Figure 423 Displaying port state
If you remove MAC addresses from the secure MAC address list, the port can continue to learn
MAC addresses.
Advanced port security mode configuration example
Network requirements
As shown in Figure 424, the switch authenticates the client with a RADIUS server. If the authentication
succeeds, the client is authorized to access the Internet.
• The RADIUS server at 192.168.1.2 functions as the primary authentication server and the secondary
accounting server, and the RADIUS server at 192.168.1.3 functions as the secondary authentication
server and the primary accounting server. The shared key for authentication is name, and the
shared key for accounting is money.
• All users use the default authentication, authorization, and accounting methods of ISP domain
system.
• The switch sends usernames without domain names to the RADIUS server.
Configure port GigabitEthernet 1/0/1 of the switch to perform the following operations:
• Allow only one 802.1X user to be authenticated.
• Allow up to three OUI values to be configured, and allow one terminal that uses any of the OUI
values to access the port.
Figure 424 Network diagram
