283
IPv4 static route configuration example
Network requirements
As shown in Figure 258, configure IPv4 static routes on Switch A, Switch B, and Switch C for any two
hosts to communicate with each other.

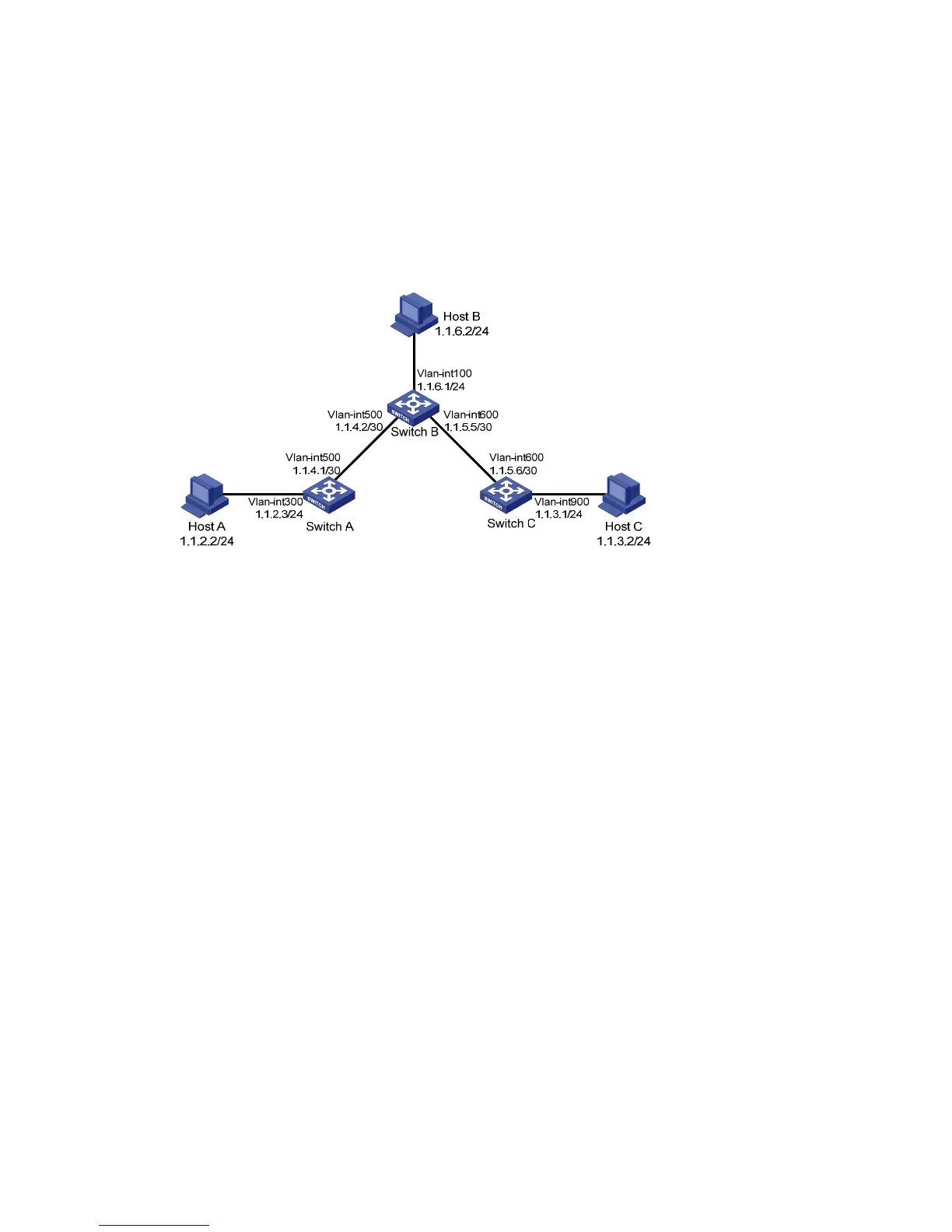

Figure 258 Network diagram
Configuration considerations
On Switch A, configure a default route with Switch B as the next hop.
On Switch B, configure one static route with Switch A as the next hop and the other with Switch C as the
next hop.
On Switch C, configure a default route with Switch B as the next hop.
Configuration procedure
1. Configure a default route to Switch B on Switch A:
a. Select Network > IPv4 Routing from the navigation tree of Switch A.
b. Click the Create tab.
c. Enter 0.0.0.0 for Destination IP Address, 0 for Mask, and 1.1.4.2 for Next Hop.
d. Click Apply.
