HP 1920 Gigabit Ethernet Switch Series User Manual

227
Setting LLDP parameters for ports in batch
1. From the navigation tree, select Network > LLDP.
By default, the Port Setup tab is displayed.
2. Select one or multiple ports on the port list.
3. Click Modify Selected to enter the page for modifying these ports in batch.

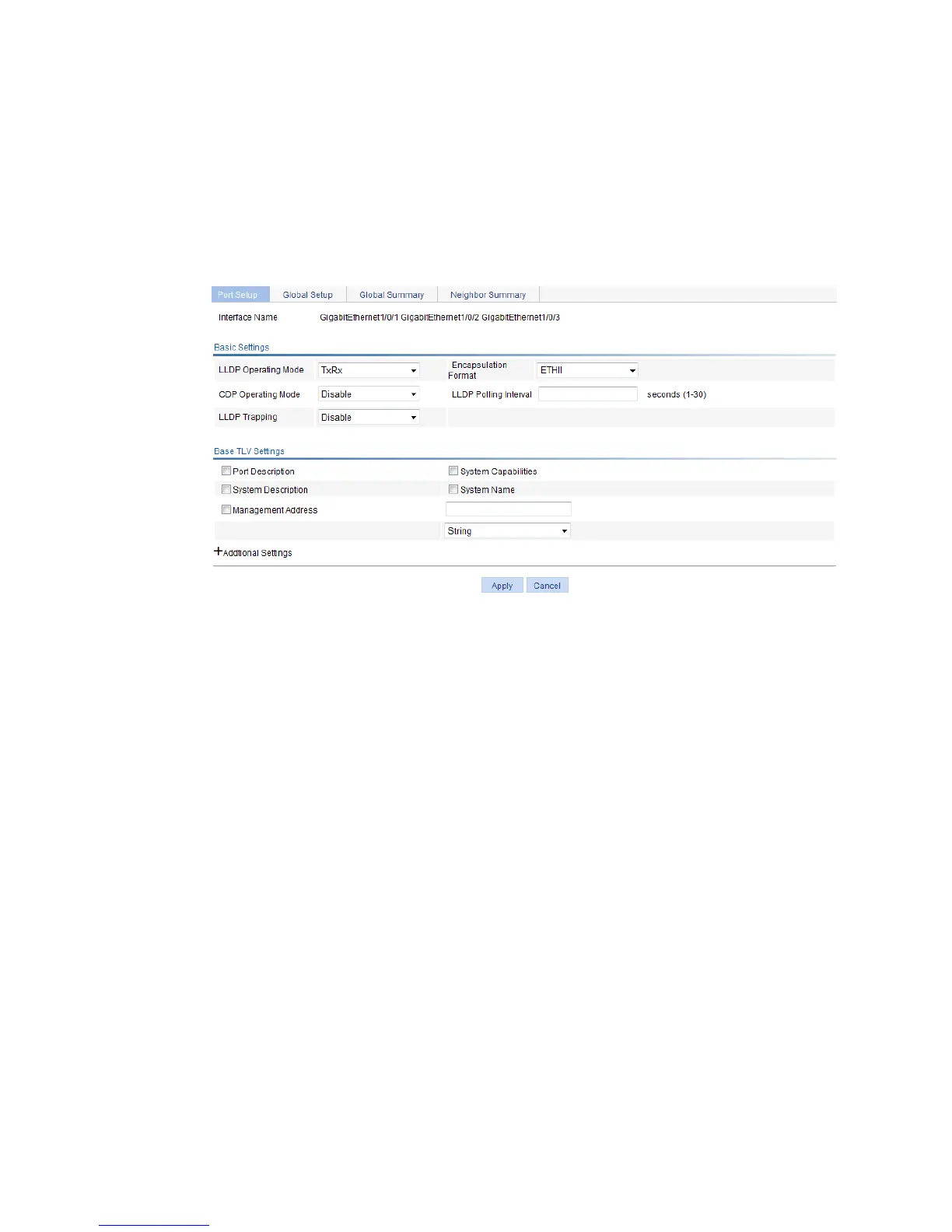

Figure 200 Modifying LLDP settings on ports in batch
4. Set the LLDP settings for these ports as described in Table 75.
5. Click Apply.
A progress dialog box appears.
6. Click Close on the progress dialog box when the progress dialog box prompts that the
configuration succeeds.
Configuring LLDP globally
1. From the navigation tree, select Network > LLDP.
2. Click the Global Setup tab.
