HP 1920 Gigabit Ethernet Switch Series User Manual

343

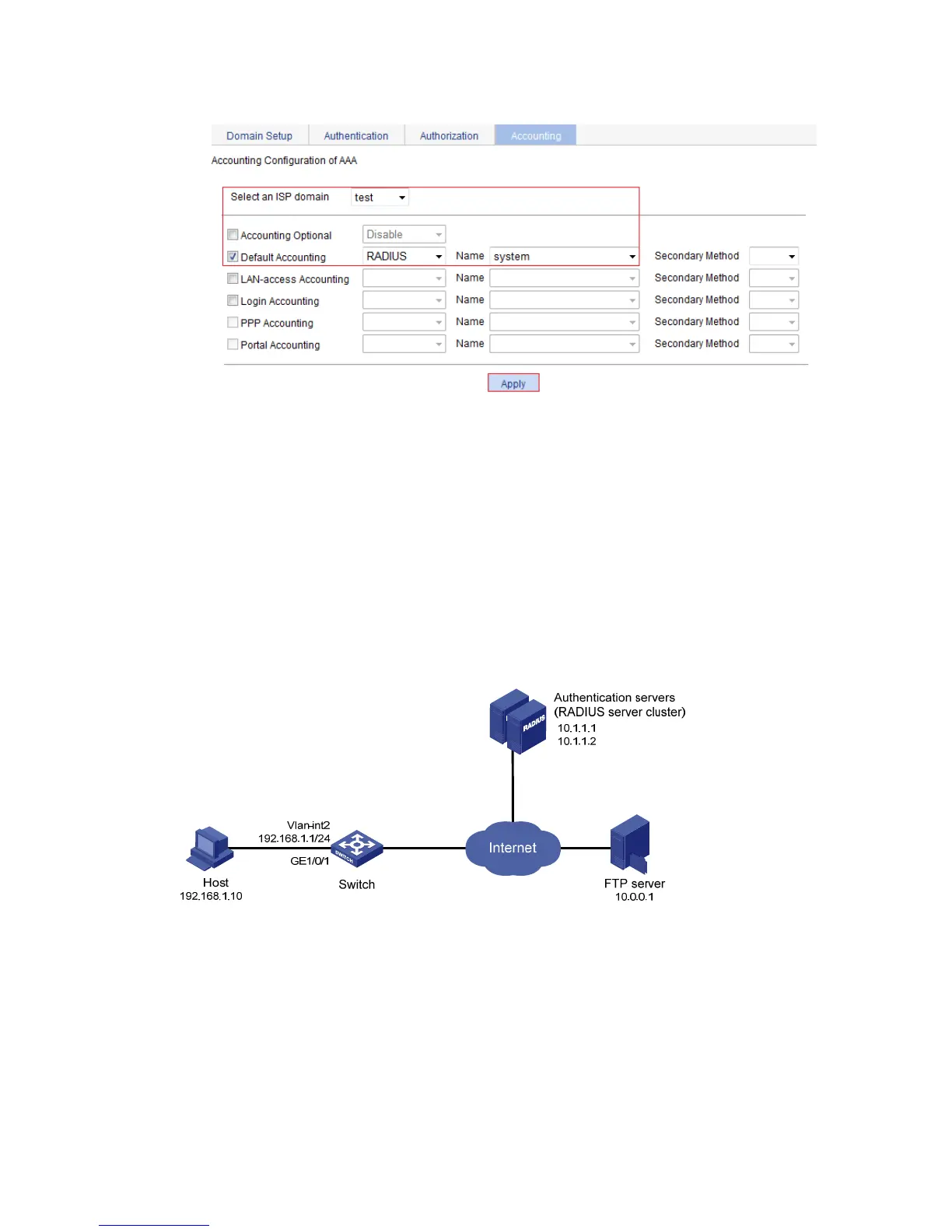

Figure 319 Configuring the AAA accounting method for the ISP domain
d. Click Apply.
e. After the configuration process is complete, click Close.
802.X with ACL assignment configuration example
Network requirements
As shown in Figure 320, perform 802.1X authentication on port GigabitEthernet 1/0/1. Use the RADIUS
server at 10.1.1.1 as the authentication and authorization server and the RADIUS server at 10.1.1.2 as the
accounting server. Assign an ACL to GigabitEthernet 1/0/1 to deny the access of 802.1X users to the
FTP server at 10.0.0.1/24.
Figure 320 Network diagram
Configuring IP addresses
# Assign an IP address to each interface as shown in Figure 320. (Details not shown.)
Configuring a RADIUS scheme
1. Create a RADIUS scheme:
a. From the navigation tree, select Authentication > RADIUS, and then click Add.
b. Enter the scheme name system.
c. Select the server type Extended.
