344
d. Select Without domain name from the Username Format list.
e. Click Apply.
2. Configure the primary authentication server in the RADIUS scheme:
a. In the RADIUS Server Configuration area, click Add.
b. Select the server type Primary Authentication.
c. Enter the IP address 10.1.1.1, and enter the port number 1812.
d. Enter expert in the Key and Confirm Key fields.
e. Click Apply.

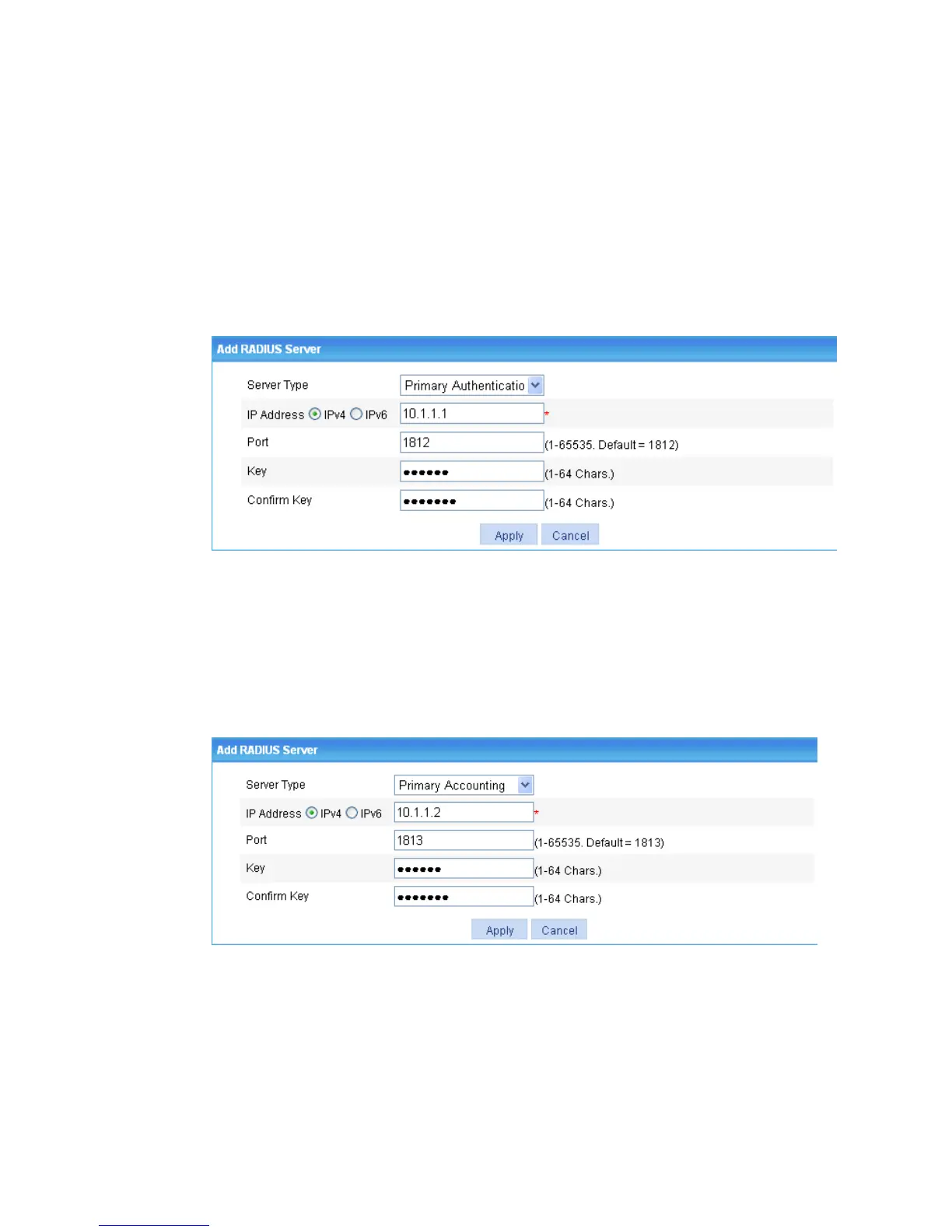

Figure 321 Configuring the RADIUS authentication server
3. Configure the primary accounting server in the RADIUS scheme:
a. In the RADIUS Server Configuration area, click Add.
b. Select the server type Primary Accounting.
c. Enter the IP address 10.1.1.2, and enter the port number 1813.
d. Enter expert in the Key and Confirm Key fields.
Figure 322 Configuring the RADIUS accounting server
e. Click Apply.
The RADIUS Server Configuration area displays the accounting server you have configured, as
shown in Figure 323.
