HP 1920 Gigabit Ethernet Switch Series User Manual

236
Displaying LLDP information received from LLDP
neighbors
1. From the navigation tree, select Network > LLDP.
2. Click the Neighbor Summary tab to display the global LLDP neighbor information, as shown
in Figure 207.

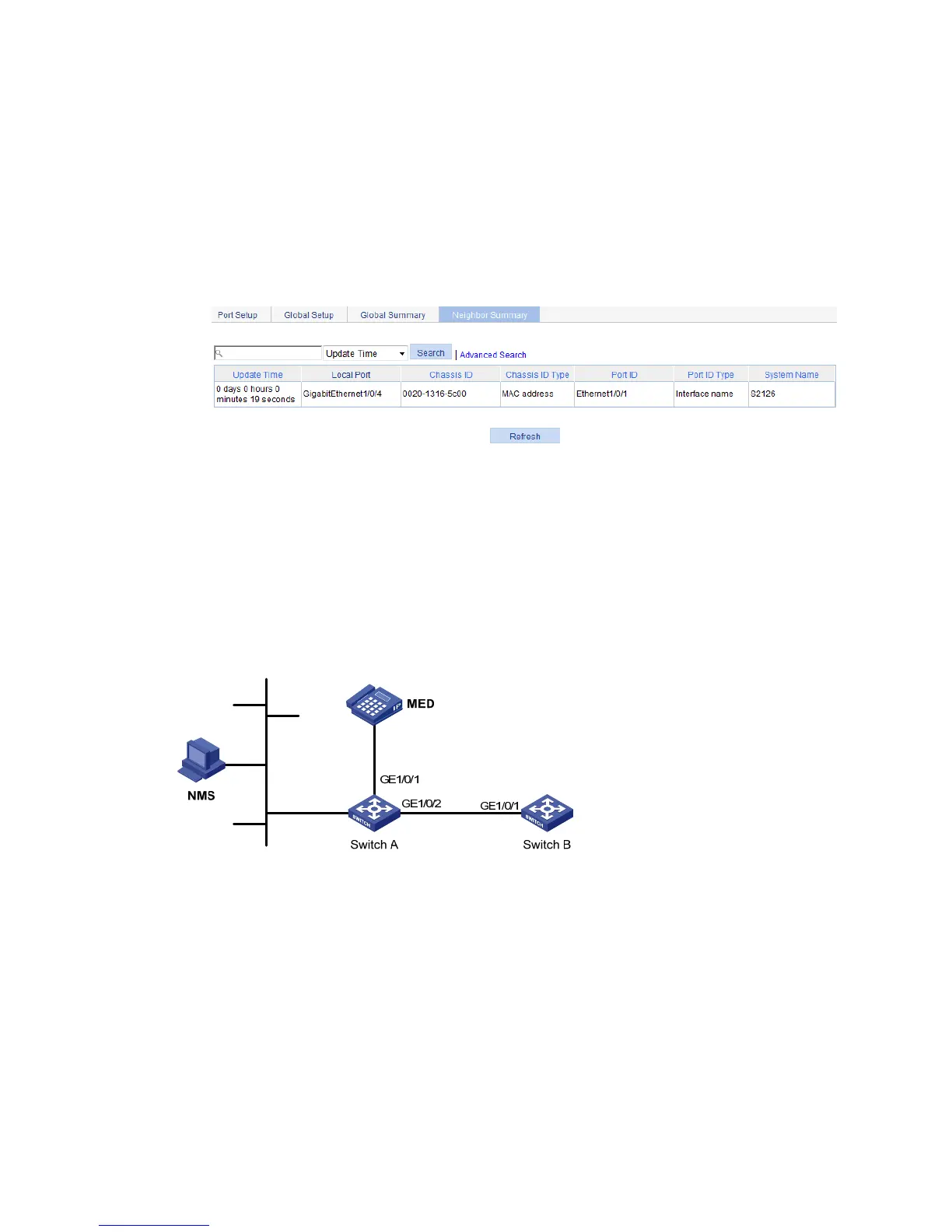

Figure 207 The neighbor summary tab
LLDP configuration example
Network requirements
As shown in Figure 208, configure LLDP on Switch A and Switch B so that the NMS can determine the
status of the link between Switch A and MED and the link between Switch A and Switch B.
Figure 208 Network diagram
Configuring Switch A
1. (Optional.) Enable LLDP on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2. By default, LLDP
is enabled on Ethernet ports.
2. Set the LLDP operating mode to Rx on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2:
a. From the navigation tree, select Network > LLDP.
By default, the Port Setup tab is displayed, as shown in Figure 209.
b. Selec
t port GigabitEthernet1/0/1 and GigabitEthernet1/0/2.
c. Click Modify Selected.
