HP 1920 Gigabit Ethernet Switch Series

274
Field Descri
p
tion
Member Ports All member ports.
MLD snooping configuration example
Network requirements
As shown in Figure 247, MLDv1 runs on Router A and MLDv1 snooping runs on Switch A. Router A acts
as the MLD querier.
Perform the configuration so that Host A can receive the IPv6 multicast packets destined for the IPv6
multicast group FF1E::101.

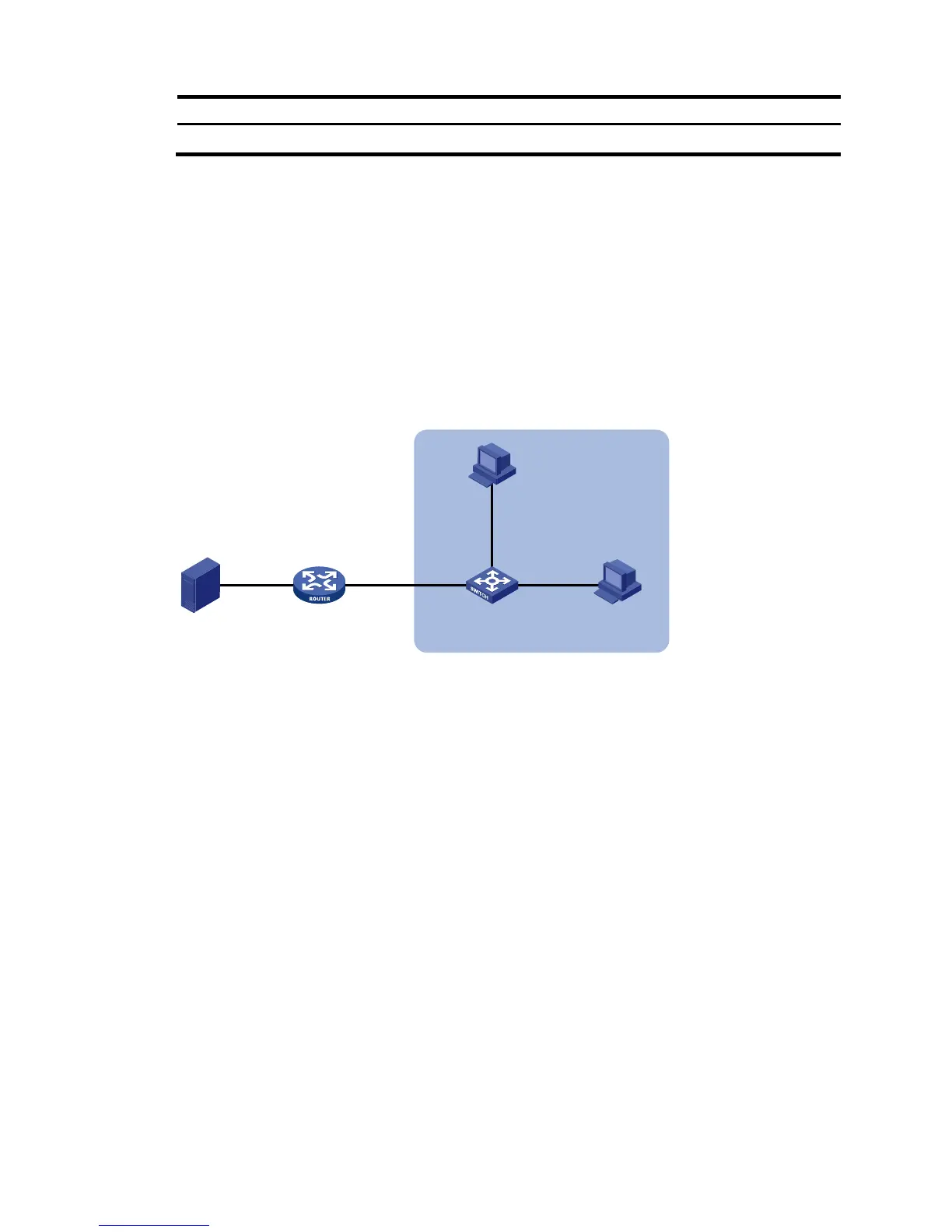

Figure 247 Network diagram
Configuration procedure
Configuring Router A
Enable IPv6 multicast routing, assign an IPv6 address to each interface, enable IPv6 PIM-DM on each
interface, and enable MLD on GigabitEthernet 1/0/1. (Details not shown.)
Configuring Switch A
1. Create VLAN 100:
a. Select Network > VLAN from the navigation tree.
b. Click the Create tab.
c. Enter 100 as the VLAN ID.
d. Click Apply.
Source
Router A Switch A
Receiver
Host A
Host B
1::1/64
GE1/0/2
GE1/0/3
MLD querier
GE1/0/1
GE1/0/1
2001::1/64
GE1/0/2
1::2/64
VLAN 100
