284

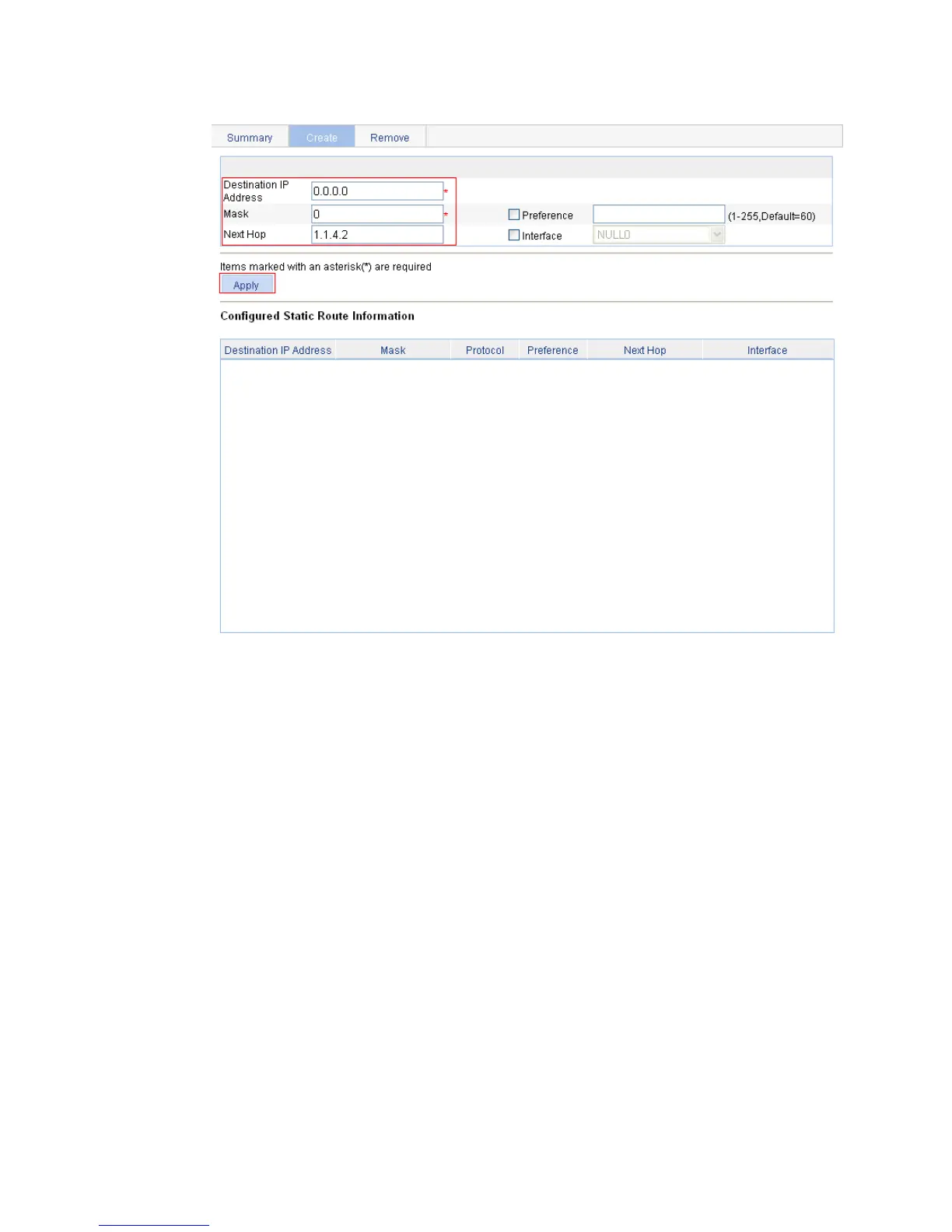

Figure 259 Configuring a default route
2. Configure a static route to Switch A and Switch C on Switch B:
a. Select Network > IPv4 Routing from the navigation tree of Switch B.
b. Click the Create tab.
The page for configuring a static route appears.
c. Enter 1.1.2.0 for Destination IP Address, 24 for Mask, and 1.1.4.1 for Next Hop.
d. Click Apply.
