HP 1920 Gigabit Ethernet Switch Series User Manual

131
b. Select the IPv4/Domain option and type 1.1.1.2 in the following field, type user1 in the
Security Name field, select v3 from the Security Model list, and select Auth/Priv from the
Security Level list.
c. Click Apply.

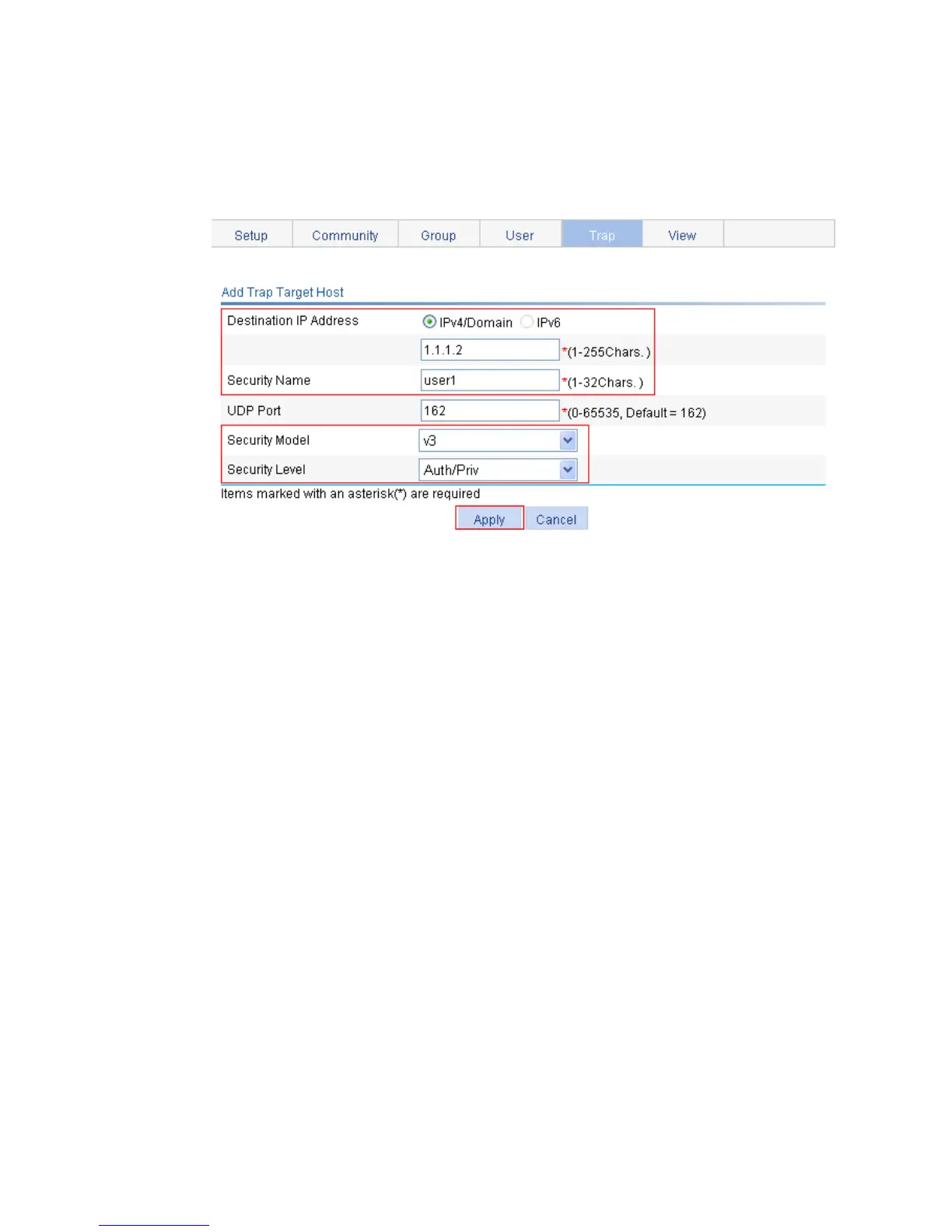

Figure 128 Adding a trap target host
Configuring the NMS
The configuration on NMS must be consistent with that on the agent. Otherwise, you cannot perform
corresponding operations.
To configure the NMS:
1. Specify the SNMP version for the NMS as v3.
2. Create an SNMP user user1.
3. Enable both authentication and privacy functions
4. Use MD5 for authentication and DES56 for encryption.
5. Set the authentication key to authkey and the privacy key to prikey.
For information about configuring the NMS, see the NMS manual.
Verifying the configuration
After the above configuration, the NMS can establish an SNMP connection with the agent and query
and reconfigure values of objects in the agent MIB.
Disable or enable an idle interface on the agent, and you can see the interface state change traps on the
NMS.
