148
A configuration progress dialog box appears.
g. After the configuration process is complete, click Close.

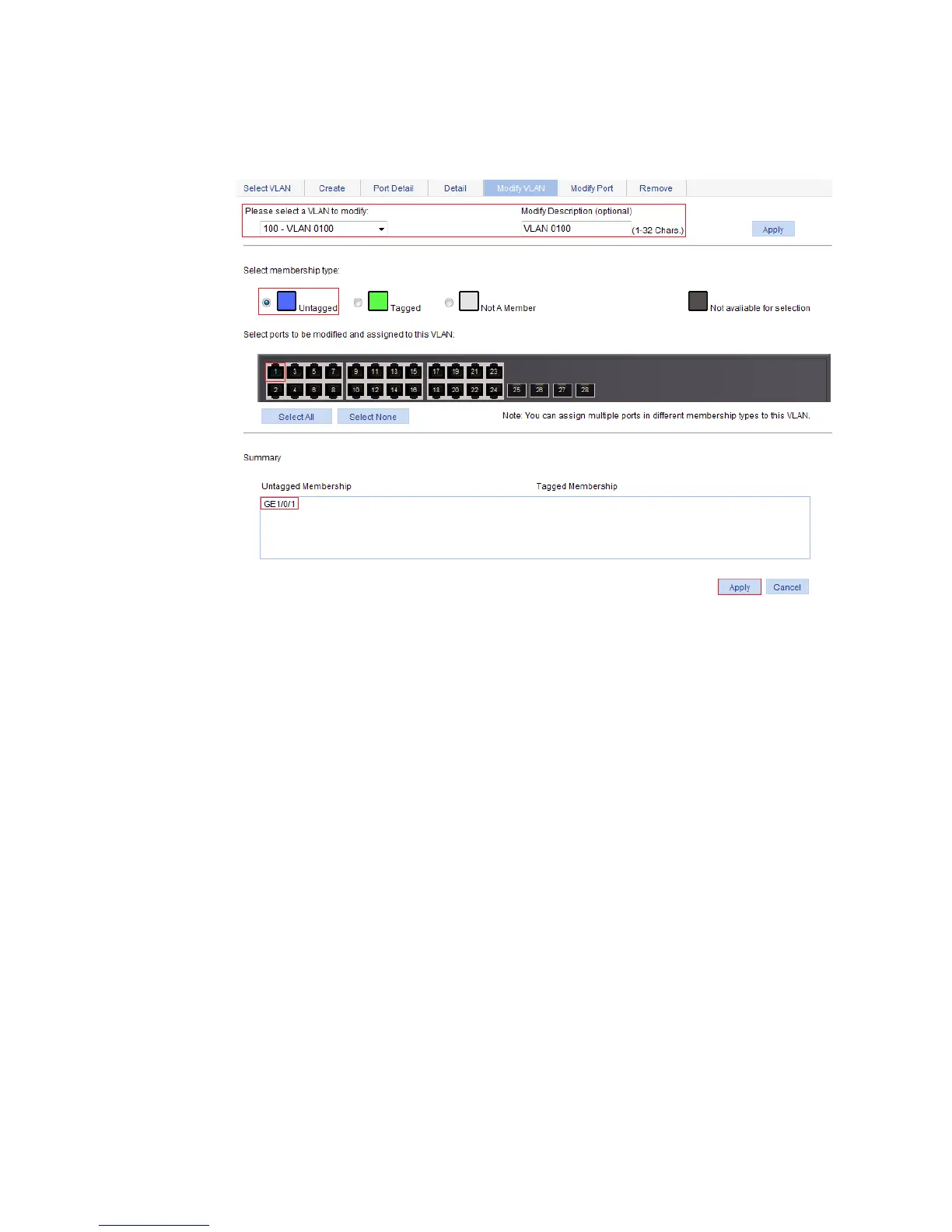

Figure 144 Assigning GigabitEthernet 1/0/1 to VLAN 100 as an untagged member
4. Assign GigabitEthernet 1/0/1 to VLAN 2, and VLAN 6 through VLAN 50 as a tagged member:
a. Click Modify Port to enter the page for modifying the VLANs to which a port belongs.
b. Select GigabitEthernet 1/0/1 on the chassis front device panel, select the Tagged option, and
enter VLAN IDs 2, 6-50.
c. Click Apply.
A configuration progress dialog box appears.
d. After the configuration process is complete, click Close in the dialog box.
