214
a. Enter link aggregation interface ID 1.
b. Select Static (LACP Disabled) for the aggregate interface type.
c. Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the
chassis front panel.
4. Click Apply.

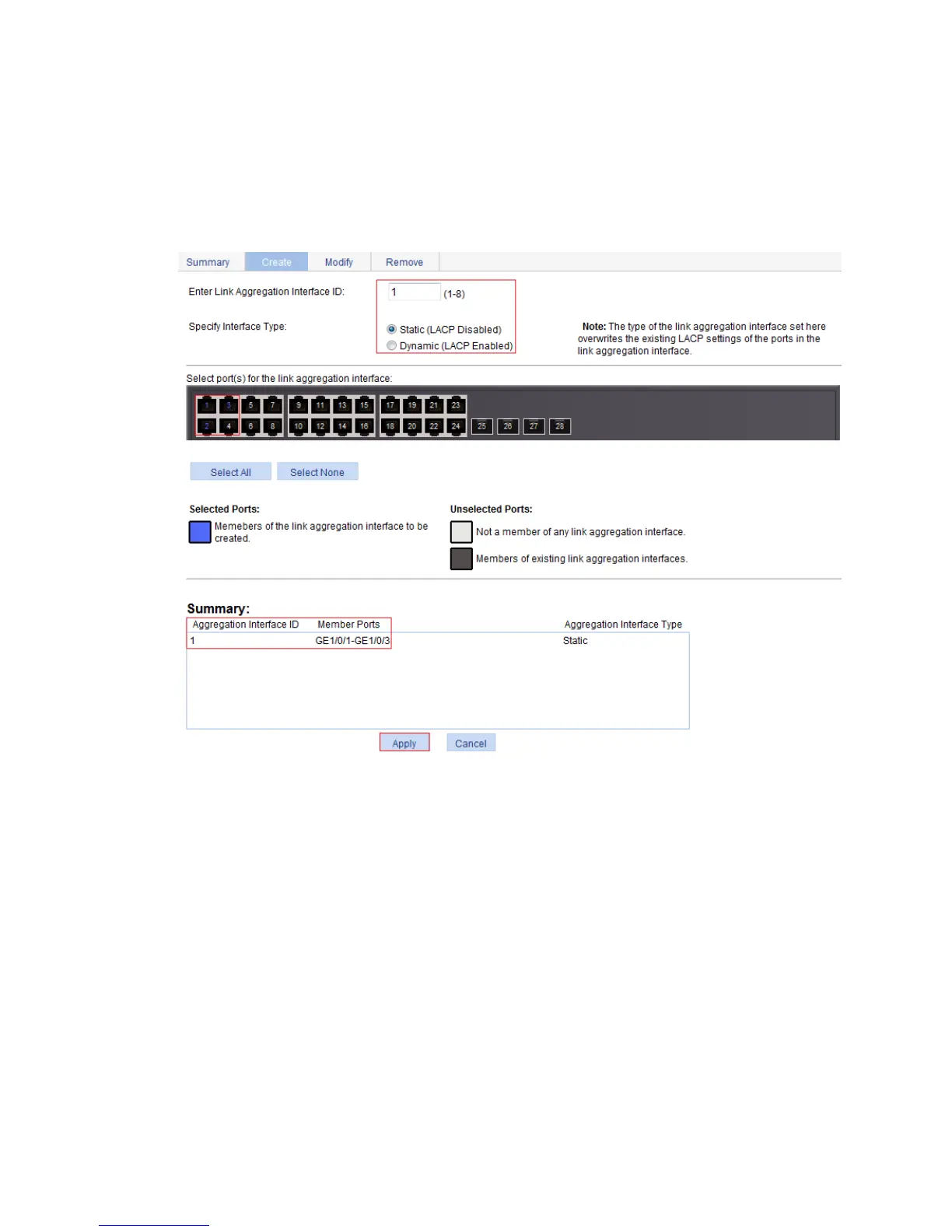

Figure 193 Creating static link aggregation group 1
Method 2: Create dynamic link aggregation group 1
1. From the navigation tree, select Network > Link Aggregation.
2. Click Create.
3. Configure dynamic aggregation group 1:
a. Enter link aggregation interface ID 1.
b. Select Dynamic (LACP Enabled) for aggregate interface type.
c. Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 on the
chassis front panel.
4. Click Apply.
