b. Click the GigabitEthernet1/0/1 port name in the port list.
c. Click the Status Information tab at the lower half of the page.
The output shows that port GigabitEthernet 1/0/1 is connected to an MED neighbor device.

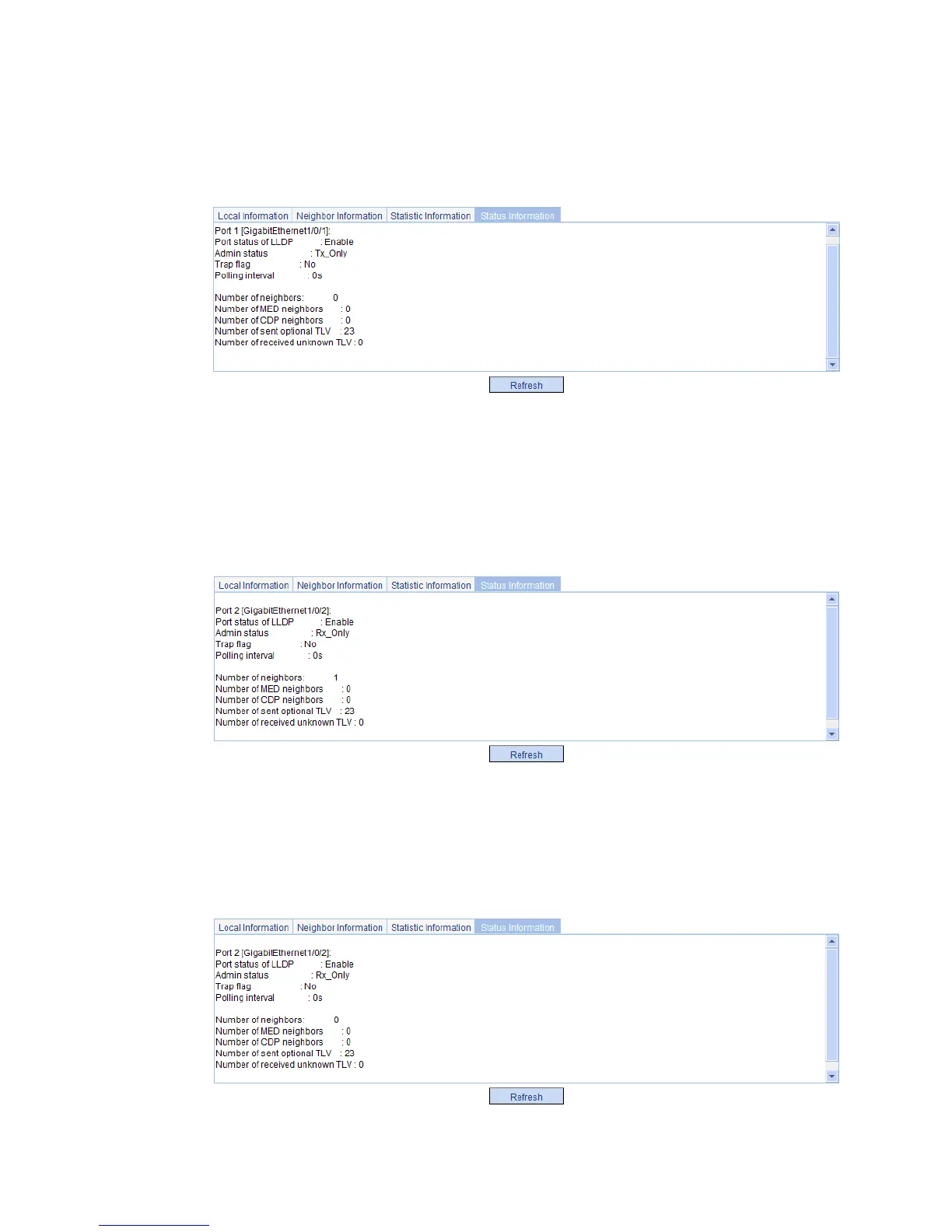

Figure 213 The status information tab (1)
2. Display the status information of port GigabitEthernet 1/0/2 on Switch A:
a. Click the GigabitEthernet1/0/2 port name in the port list.
b. Click the Status Information tab at the lower half of the page.
The output shows that port GigabitEthernet 1/0/2 is connected to a non-MED neighbor device
(Switch B), as shown in Figure 214.
Figure 214 The status information tab
(2)
3. Tear down the link between Switch A and Switch B.
4. Click Refresh to display the status information of port GigabitEthernet 1/0/2 on Switch A.
The updated status information of port GigabitEthernet 1/0/2 shows that no neighbor device is
connected to the port, as shown in Figure 215.
Figure 215 The status information tab
displaying the updated port status information
