HP 1920 Gigabit Ethernet Switch Series User Manual

247

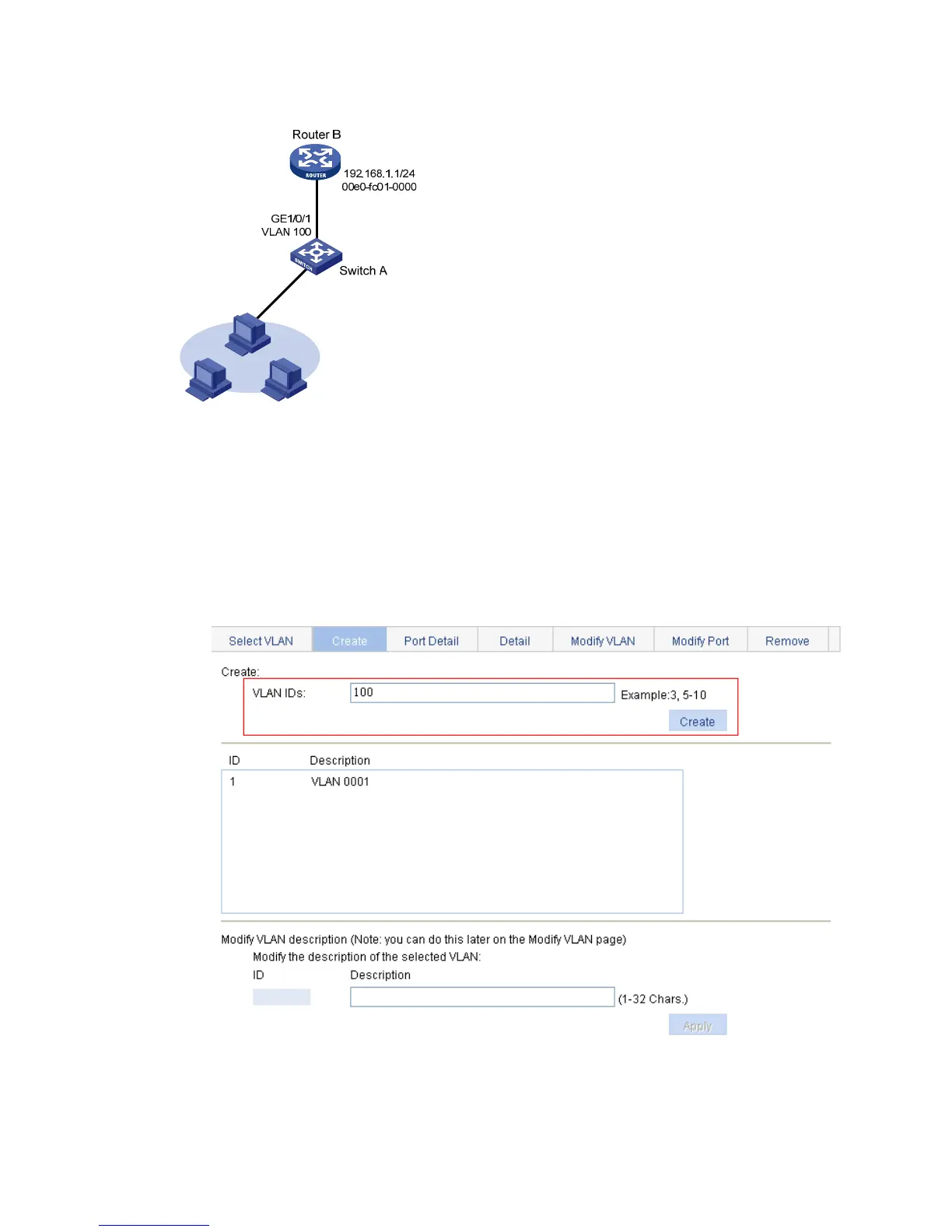

Figure 221 Network diagram
Configuring Switch A
1. Create VLAN 100:
a. From the navigation tree, select Network > VLAN.
b. Click the Add tab.
c. Enter 100 in the VLAN ID field.
d. Click Create.
Figure 222 Creating VLAN 100
2. Add GigabitEthernet 1/0/1 to VLAN 100:
a. Click the Modify Port tab.
b. In the Select Ports area, select interface GigabitEthernet 1/0/1.
