305
3. Enable the DHCP relay agent on VLAN-interface 1:
a. In the Interface Config field, click the icon of VLAN-interface 1, and then perform the
following operations, as shown in Figure 282.
b. Selec
t the Enable option next to DHCP Relay.
c. Select 1 for Server Group ID.
d. Click Apply.

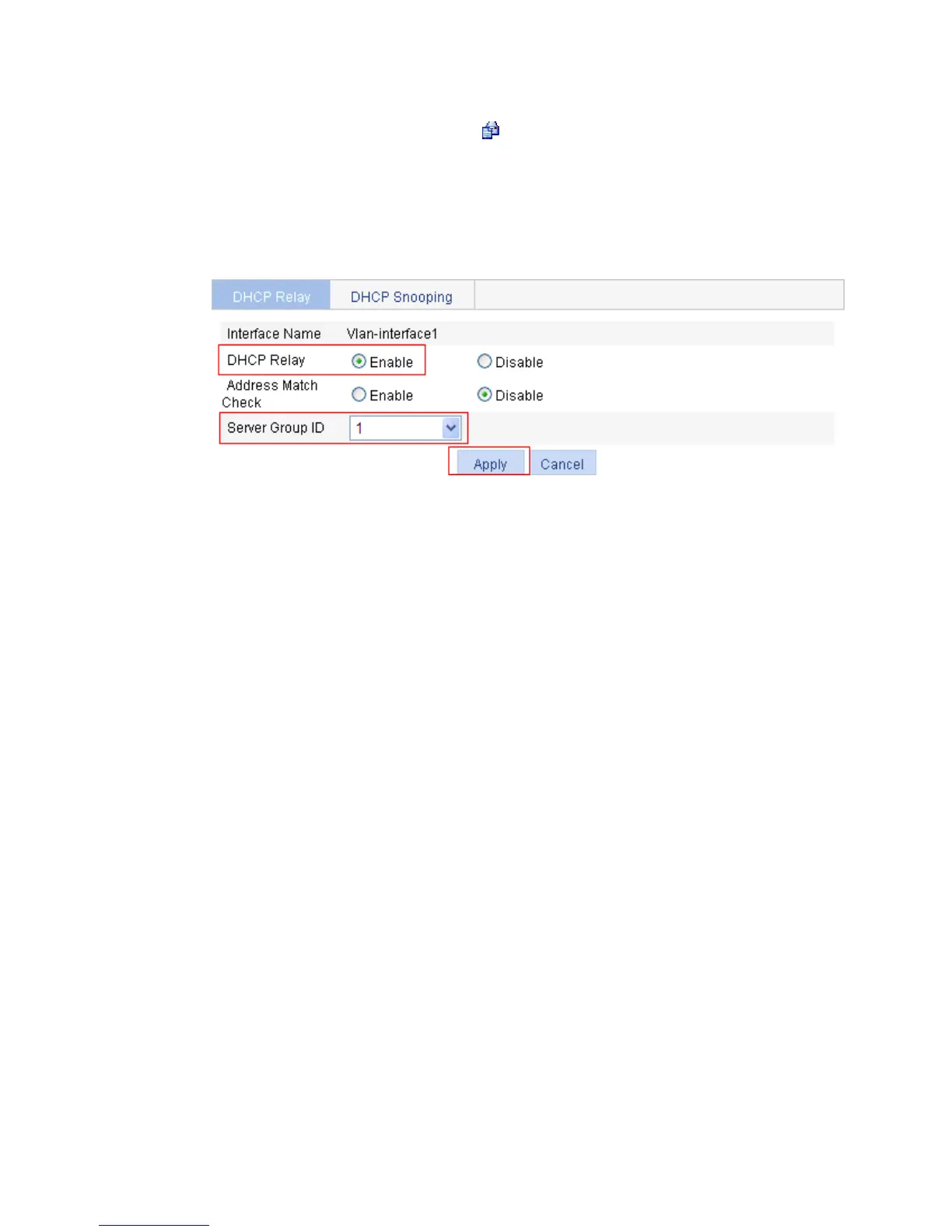

Figure 282 Enabling the DHCP relay agent on an interface and correlate it with a server group
Because the DHCP relay agent and server are on different subnets, you need to configure a static route
or dynamic routing protocol to make them reachable to each other.
