HP 1920 Gigabit Ethernet Switch Series

22

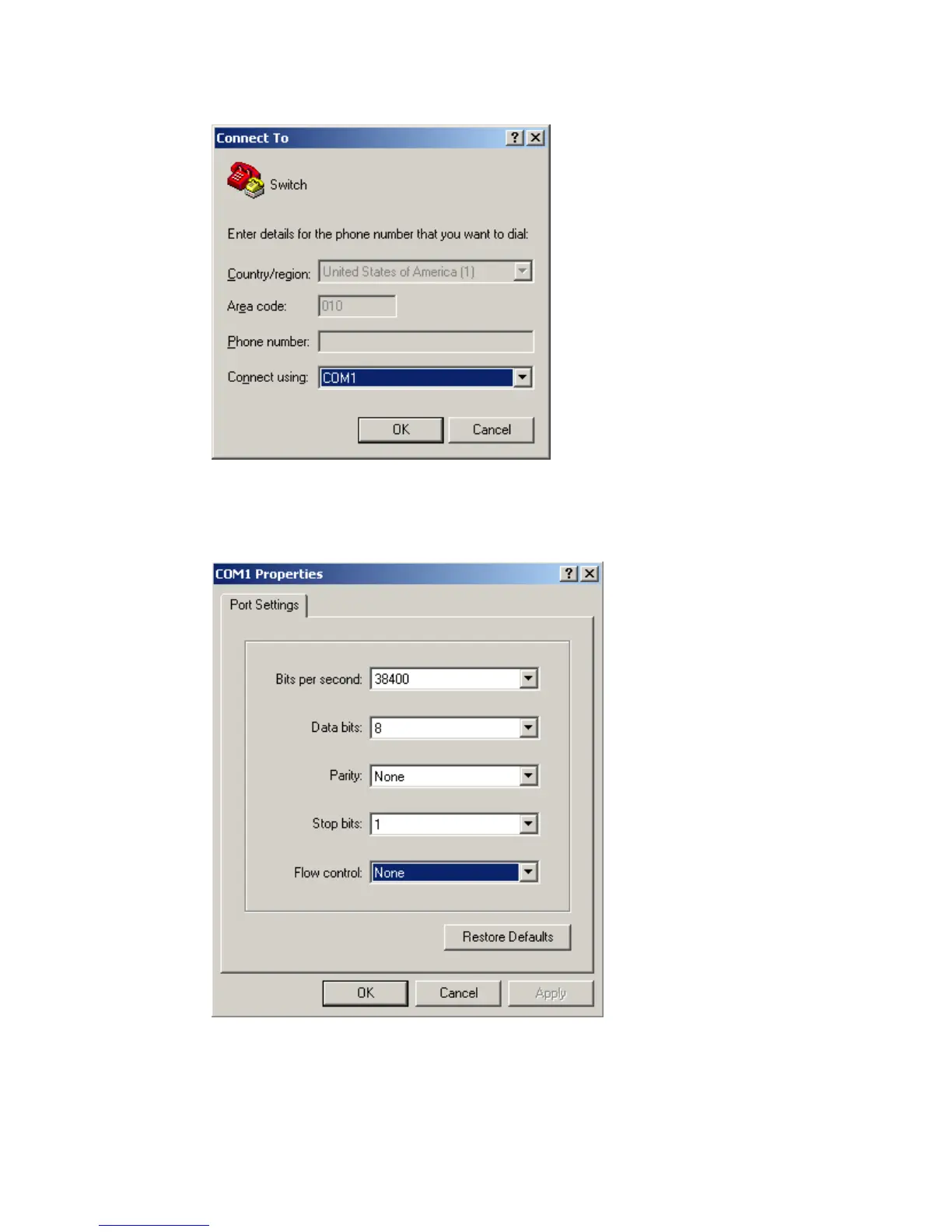

Figure 16 Setting the serial port used by the HyperTerminal connection
4. Set Bits per second to 38400, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to
None, and click OK.
Figure 17 Setting the serial port parameters
5. Select File > Properties in the HyperTerminal window.
