346

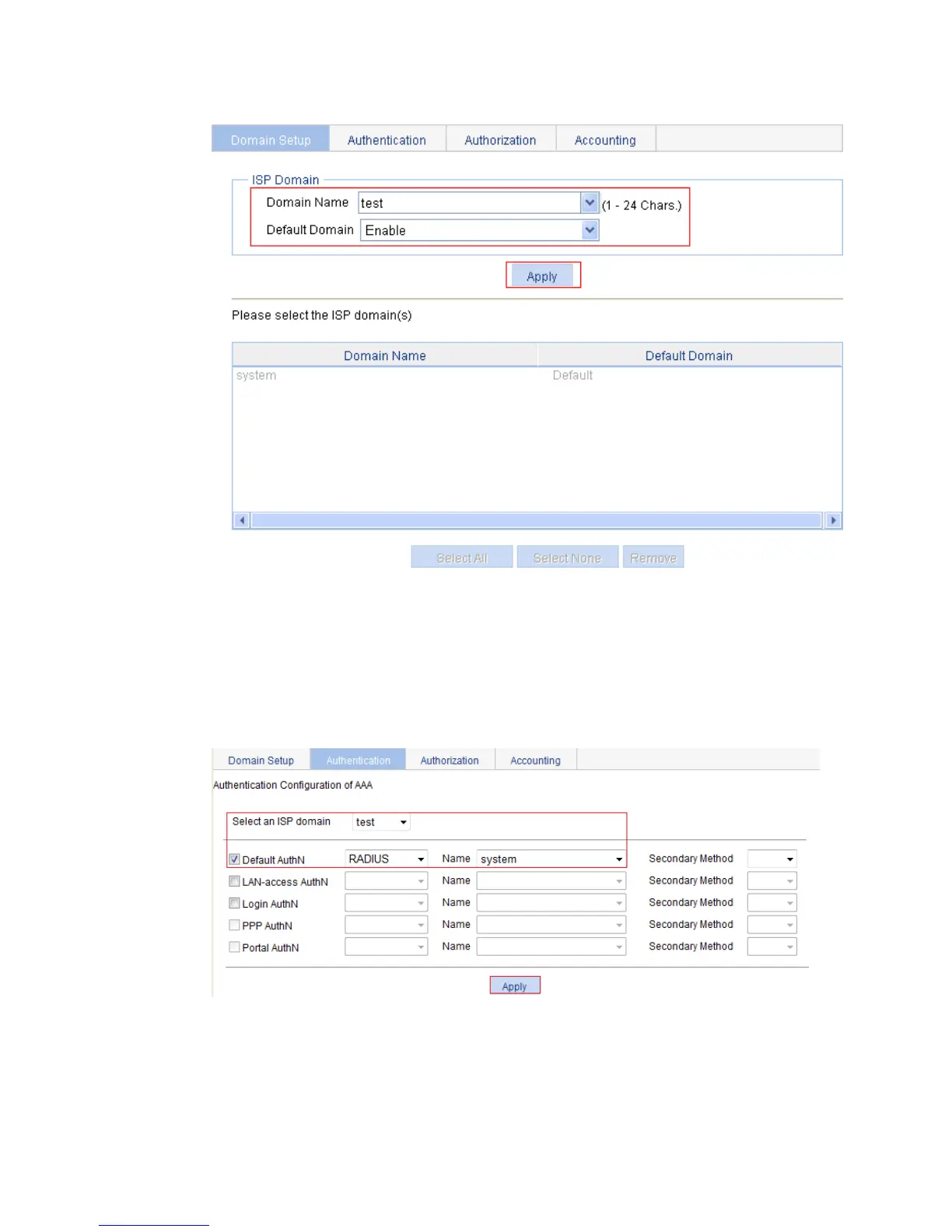

Figure 324 Creating an ISP domain
2. Configure AAA authentication method for the ISP domain:
a. Click the Authentication tab.
b. Select test from the Select an ISP domain list.
c. Select Default AuthN, select RADIUS as the default authentication method, and select the
authentication scheme system from the Name list, as shown in Figure 325.
Figure 325 Configuring the AAA auth
entication method for the ISP domain
d. Click Apply.
A configuration progress dialog box appears, as shown in Figure 326.
