348

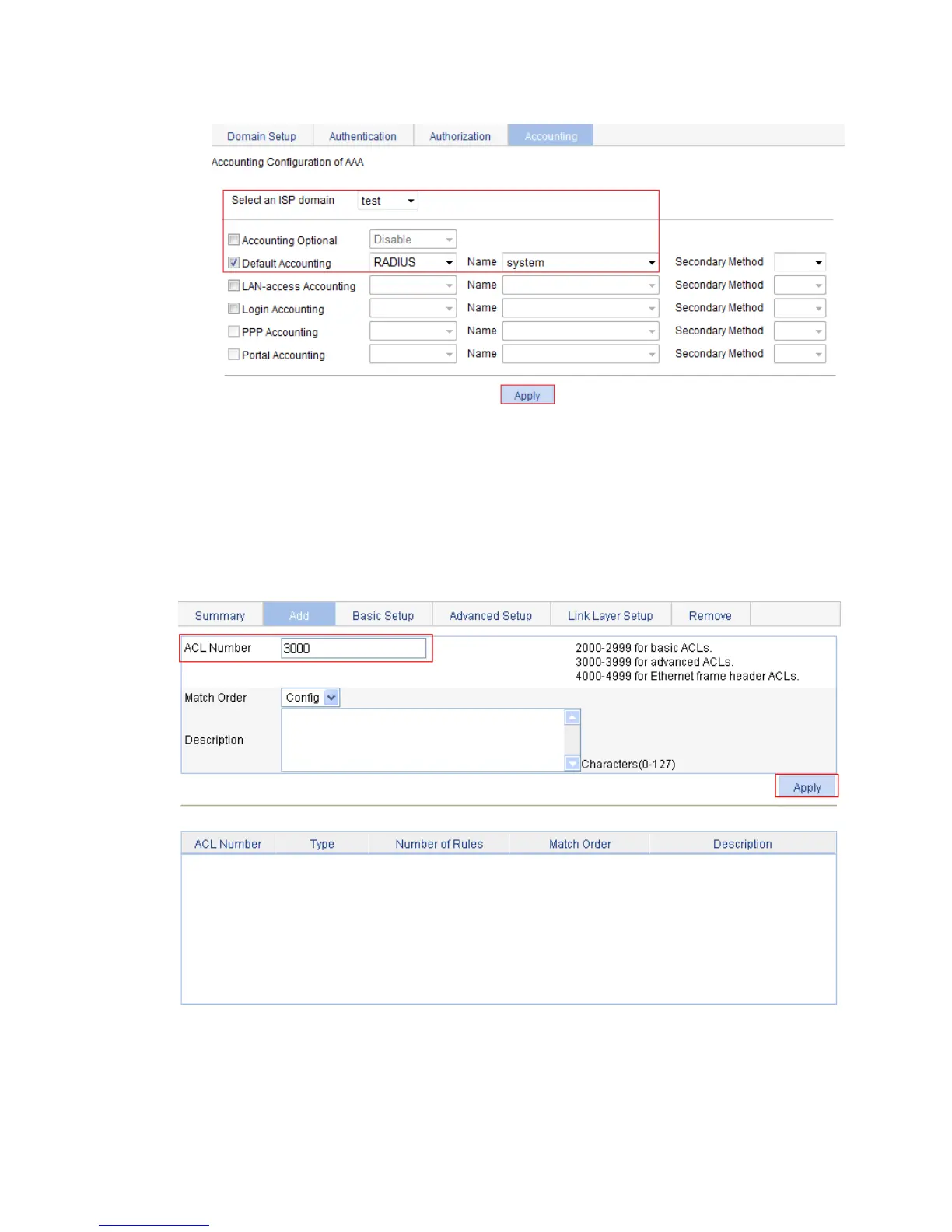

Figure 328 Configuring the AAA accounting method for the ISP domain
f. After the configuration process is complete, click Close.
Configuring an ACL
1. From the navigation tree, select QoS > ACL IPv4.
2. Click the Add tab.
3. Enter the ACL number 3000, and click Apply.
Figure 329 Creating ACL 3000
4. Click the Advanced Setup tab.
5. Configure the following parameters:
a. Select 3000 from the ACL list.
b. Select Rule ID, enter the rule ID 0, and select the action Deny.
