445
a. Click Basic Setup.
The page for configuring an ACL rule appears.
b. Select 2001 from the ACL list, select Permit from the Action list, select the Source IP Address
box and enter 10.1.1.3, and then enter 0.0.0.0 in the Source Wildcard field.
c. Click Add.

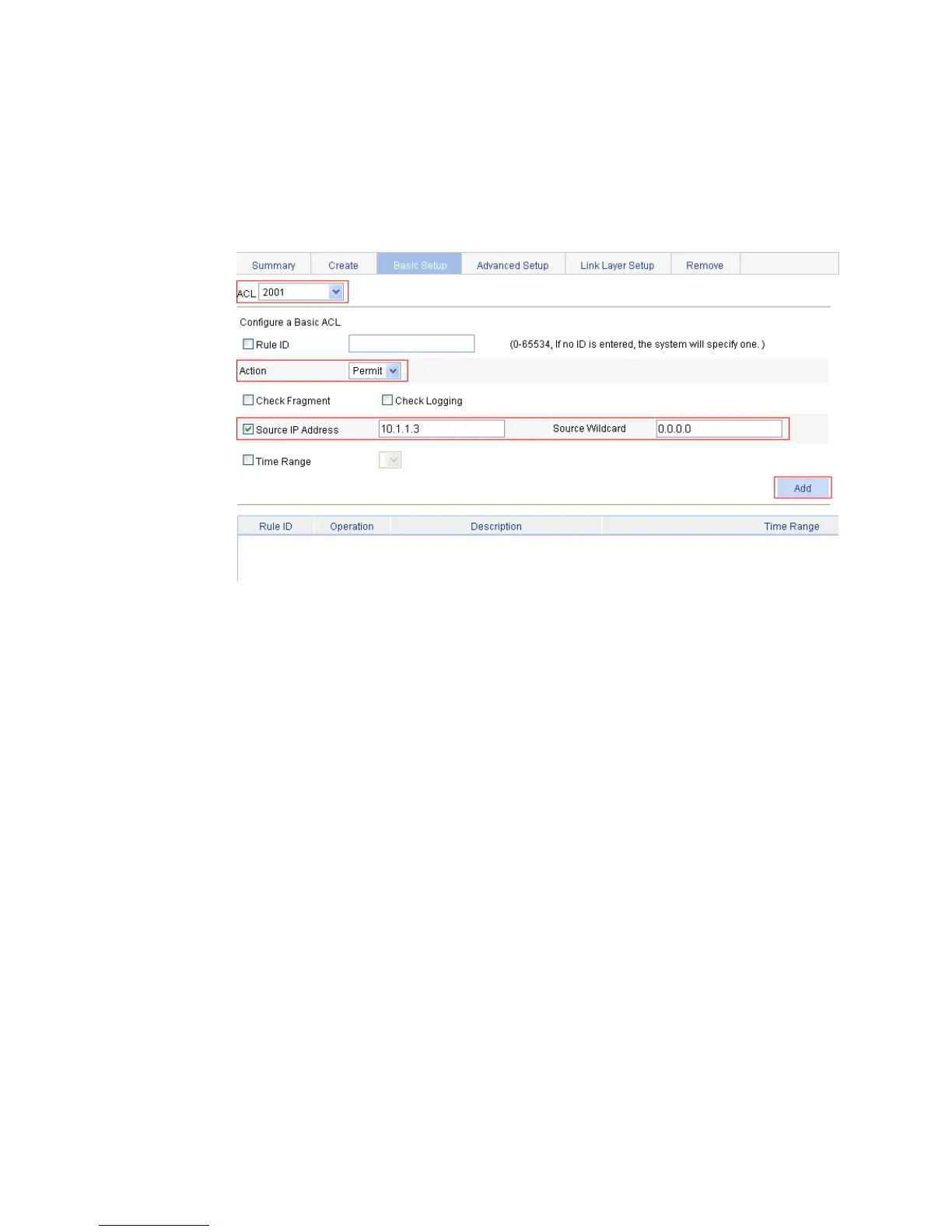

Figure 442 Configuring an ACL rule to permit Host B
3. Configure authorized IP:
a. From the navigation tree, select Security > Authorized IP.
b. Click Setup.
The authorized IP configuration page appears.
c. Select 2001 for IPv4 ACL in the Telnet field, and select 2001 for IPv4 ACL in the Web (HTTP)
field.
d. Click Apply.
