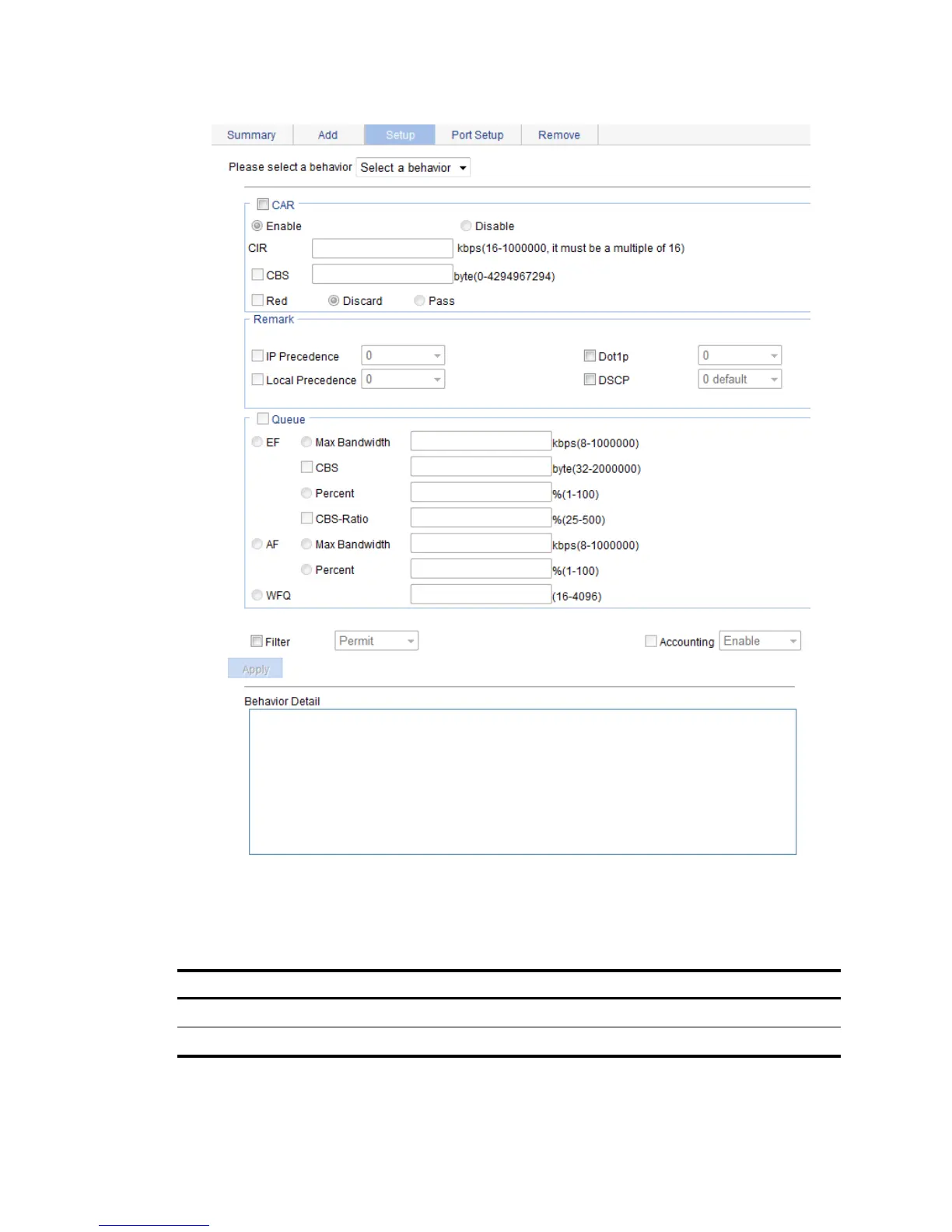

Figure 467 Setting a traffic behavior

3. Configure other actions for a traffic behavior as described in Table 155.

4. Click Apply.

Table 155 Configuration items

Item Descri

tion

Please select a behavior

Select an existing behavior in the list.

CAR

Enable/Disable Enable or disable CAR.
