HP 1920 Gigabit Ethernet Switch Series User Manual

84
3. Enter 1 for Mirroring Group ID, and select Local from the Type list.
4. Click Apply.
Configuring GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 as the source ports
1. Click Modify Port.
2. Select 1 – Local from the Mirroring Group ID list.
3. Select Mirror Port from the Port Type list.
4. Select both from the Stream Orientation list.
5. Select 1 (GigabitEthernet 1/0/1) and 2 (GigabitEthernet 1/0/2) on the chassis front panel.

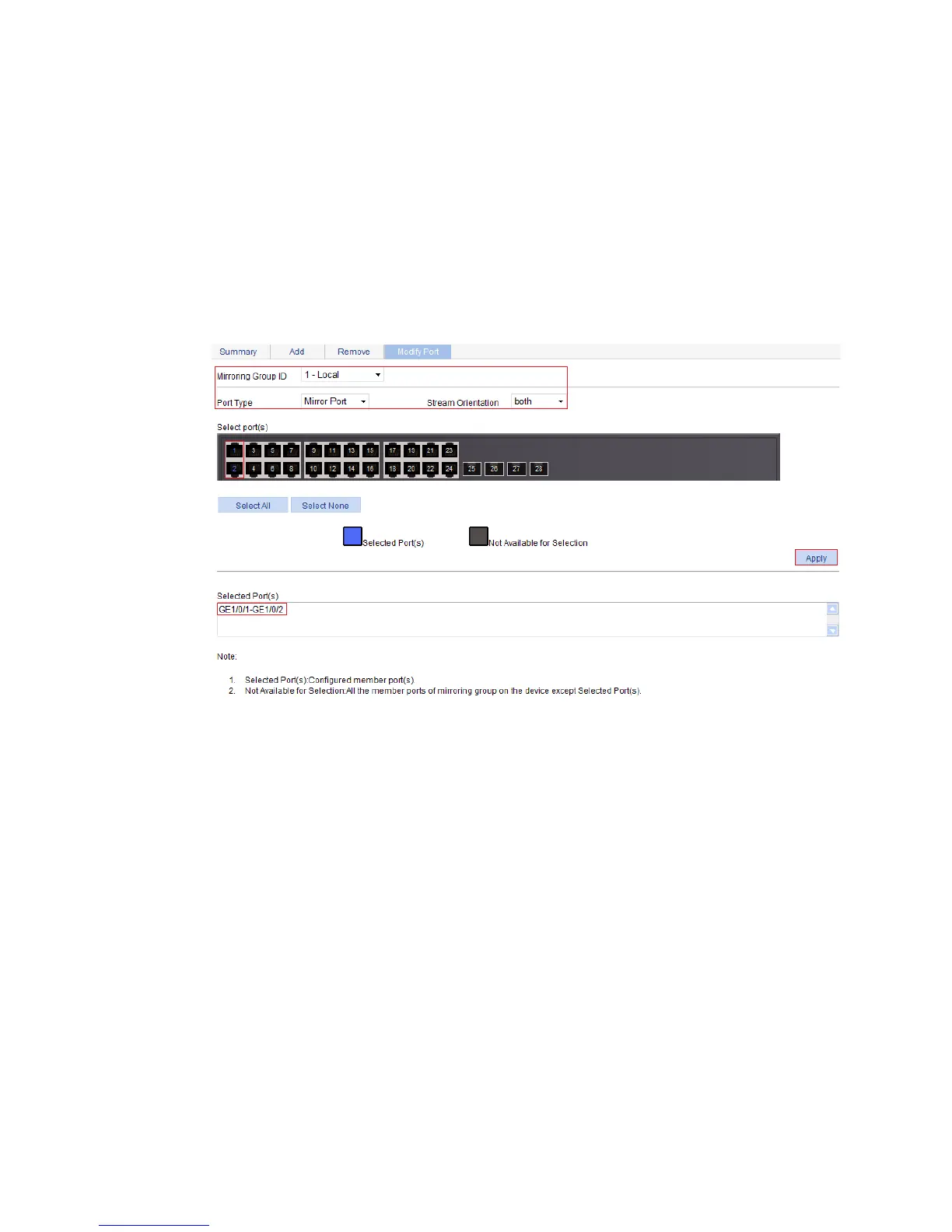

Figure 70 Configuring the source ports
6. Click Apply.
A configuration progress dialog box appears.
7. After the success notification appears, click Close.
Configuring GigabitEthernet 1/0/3 as the monitor port
1. Click Modify Port.
2. Select 1 – Local from the Mirroring Group ID list.
3. Select Monitor Port from the Port Type list.
4. Select 3 (GigabitEthernet 1/0/3) on the chassis front panel.
