175

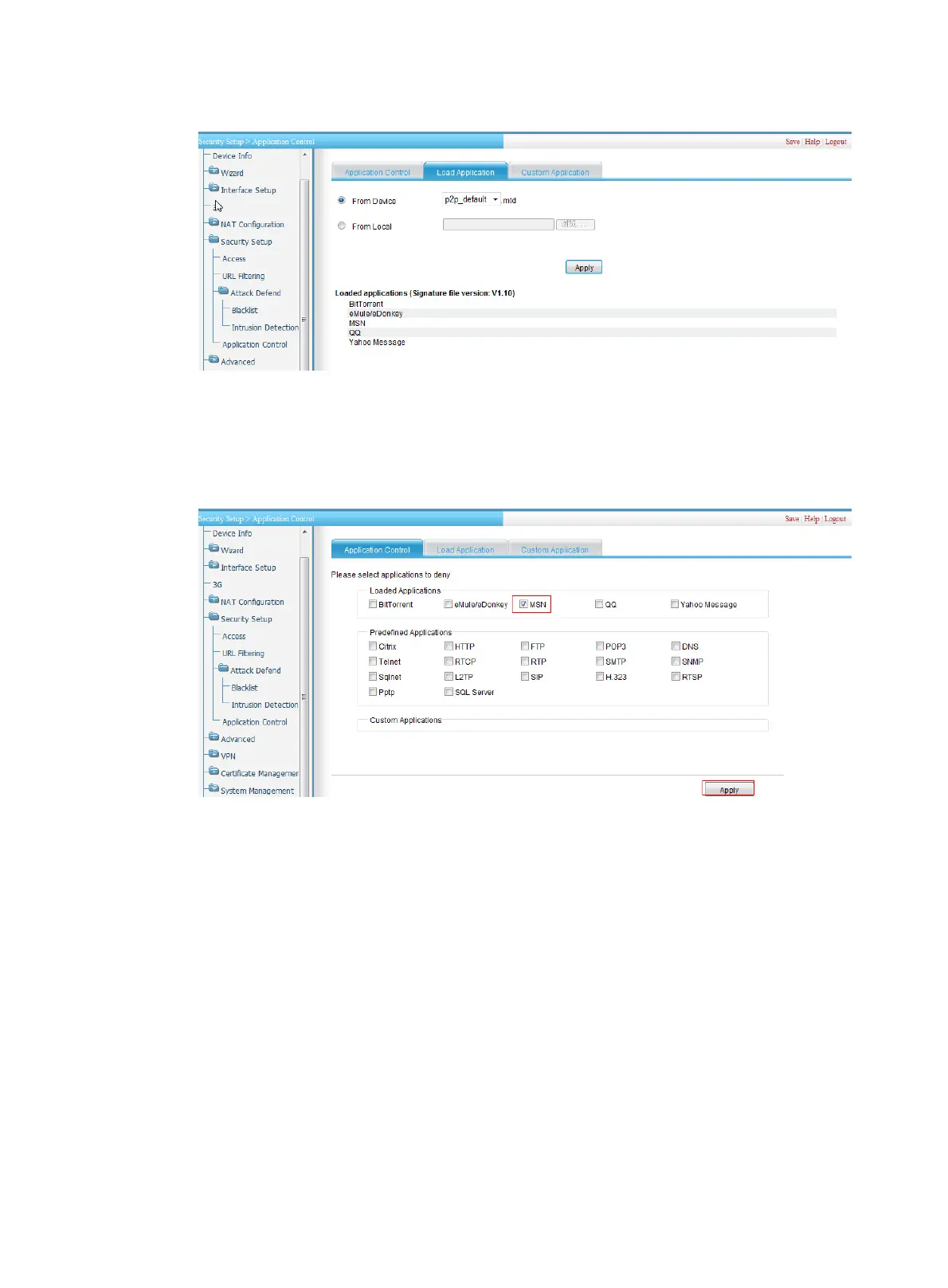

Figure 180 Loaded applications

# Enable application control.

• Click the Application Control tab and then perform the following configurations, as shown in Figure

Figure 181 Configuring application control

• Select MSN from the Loaded Applications area.

• Click Apply.
