HP MSR SERIES User Manual

221
b. Select the Enable option in the DHCP field.
c. Click Apply.

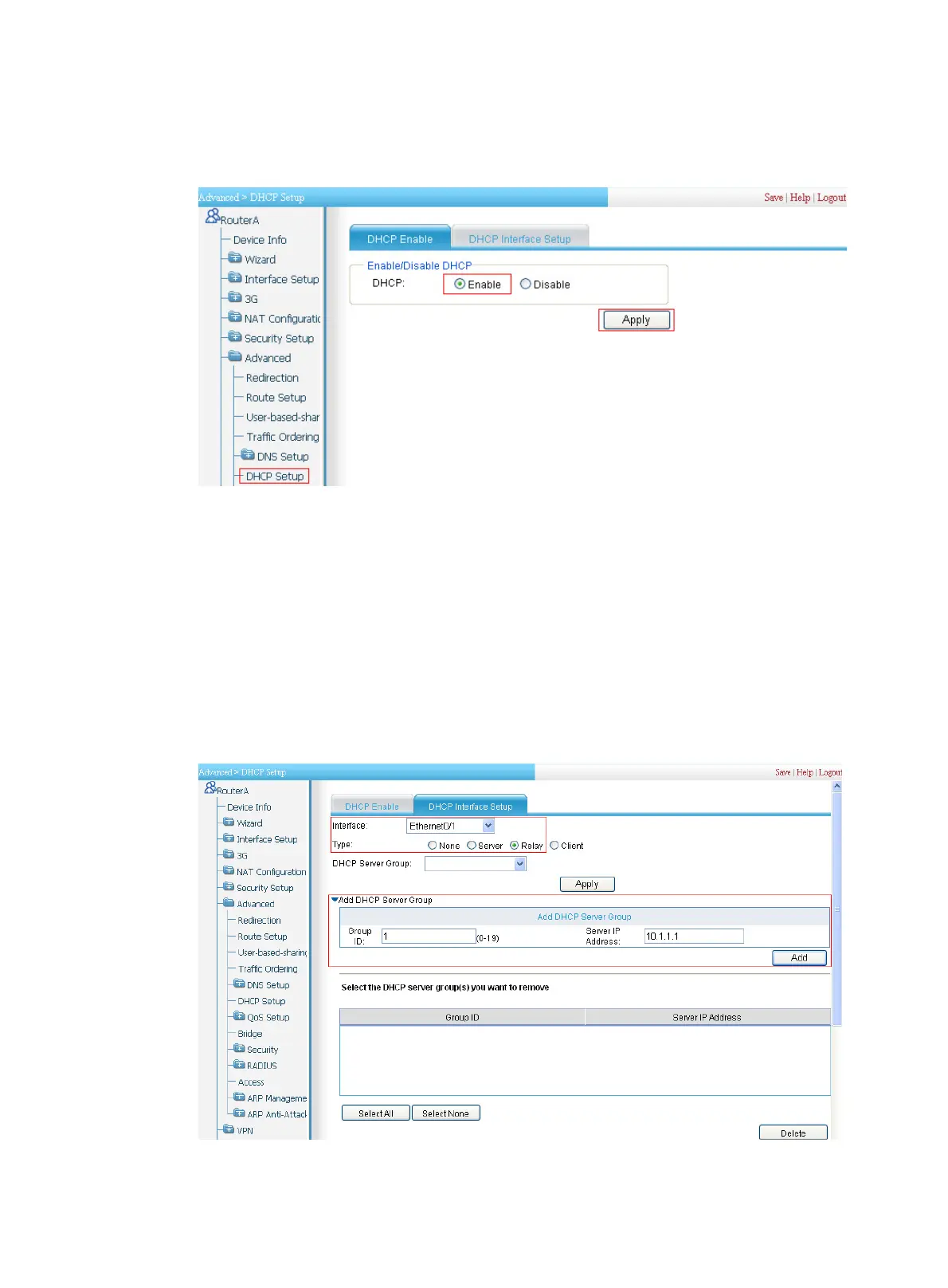

Figure 227 DHCP enable
3. Create a DHCP server group:
a. Click the DHCP Interface Setup tab.
b. Select Ethernet0/1 from the Interface list.
c. Select the Relay option in the Type field.
d. Expand the Add DHCP Server Group node.
e. Enter 1 in the Group ID field.
f. Enter 10.1.1.1 in the Server IP Address field.
g. Click Apply.
Figure 228 DHCP server group creating
4. Enable the DHCP relay agent on interface Ethernet 0/1.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
