222
a. Select 1 from the DHCP Server Group list.
b. Click Apply.

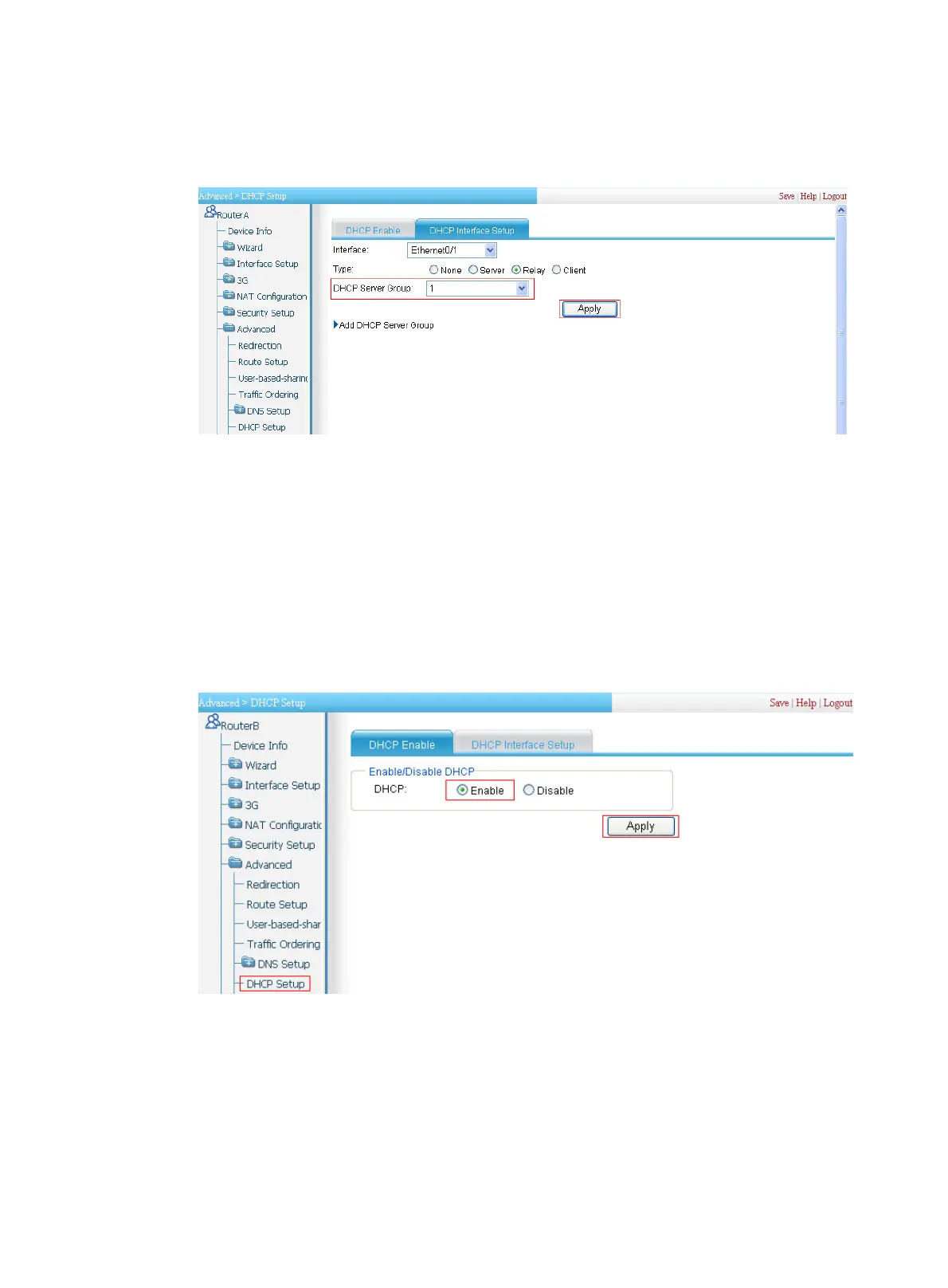

Figure 229 The page for enabling the DHCP relay agent on interface Ethernet 0/1
Configuring the DHCP server (Router B)
1. Specify addresses for interfaces. (Details now shown.)
2. Enable DHCP:
a. Select Advanced > DHCP Setup from the navigation tree of Router B
The default DHCP Enable tab appears, as shown in Figure 230.
b. Selec
t the Enable option in the DHCP field.
c. Click Apply.
Figure 230 Enable DHCP
3. Enable the DHCP server on interface Ethernet 0/1. (By default, the DHCP server is enabled on
Ethernet 0/1. Details are not shown.)
4. Configure a dynamic DHCP address pool:
a. Click the DHCP Interface Setup tab.
b. Select the Server option in the Type field and expand the Assignable IP Addresses node.
