HP MSR SERIES User Manual

223
c. Enter pool1 in the Pool Name field and select the Dynamic Allocation option in the Address
Allocation Mode field.
d. Enter 10.10.1.0 in the IP Address field, select the Subnet Mask box, and then enter
255.255.255.0.
e. Set the Lease Duration to 7 days, 0 hours, and 0 minutes.
f. Select the Domain Name box, and then enter aabbcc.com.
g. Select the Gateway IP Address box, and then enter 10.10.1.126.
h. Select the Primary DNS Server box, and then enter 10.10.1.2.
i. Click Apply.

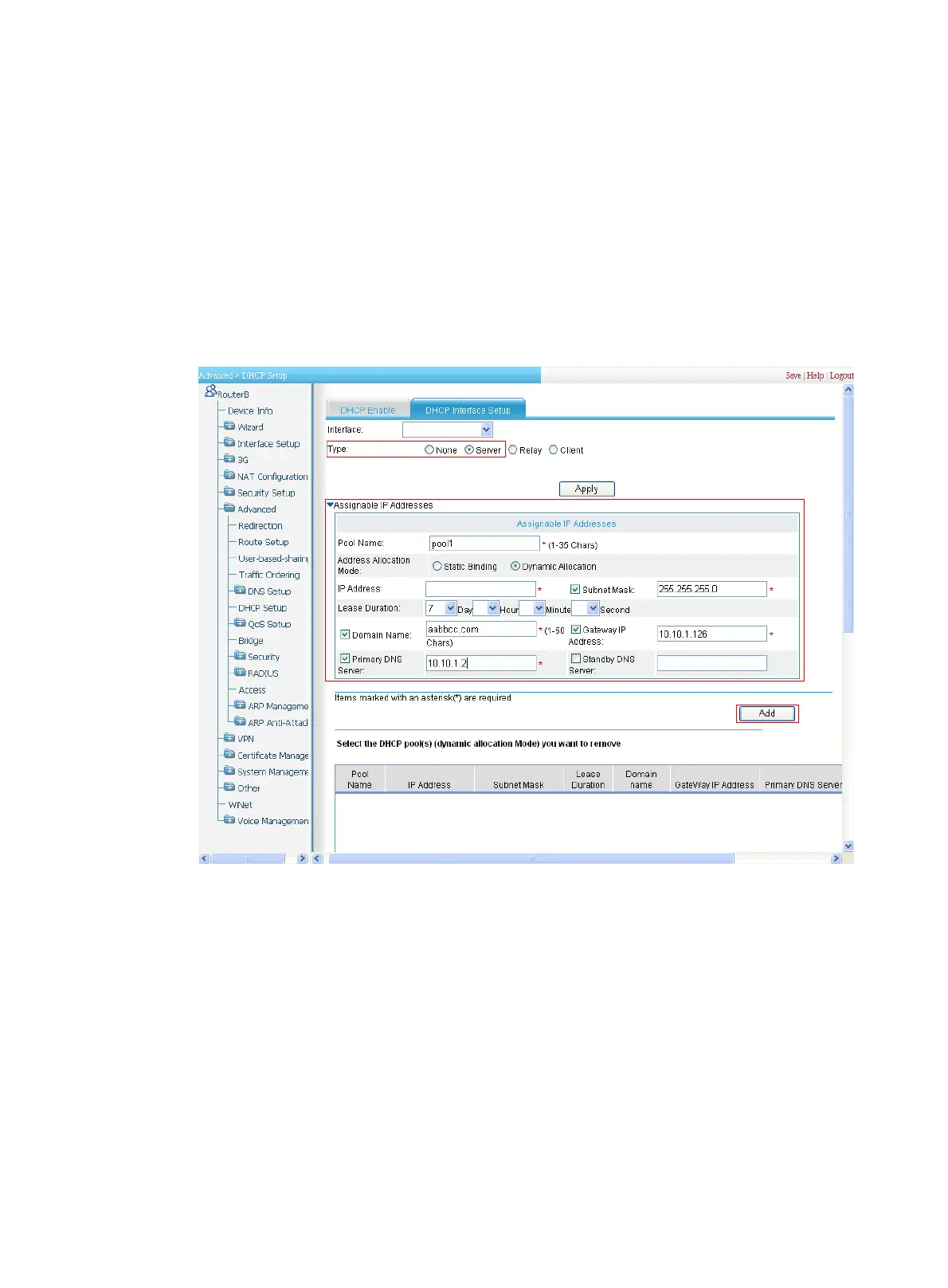

Figure 231 Dynamic DHCP address pool configuration
5. Exclude IP addresses from dynamic allocation (DNS server and gateway addresses):
a. Expand the Forbidden IP Addresses node, as shown in Figure 232.
b. Enter 10.1.
1.2 in the Start IP Address field.
c. Enter 10.1.1.2 in the End IP Address field.
d. Click Apply.
e. Enter 10.1.1.126 in the Start IP Address field, as shown in Figure 232.
f. Enter 10.1.
1.126 in the End IP Address field.
g. Click Apply.
