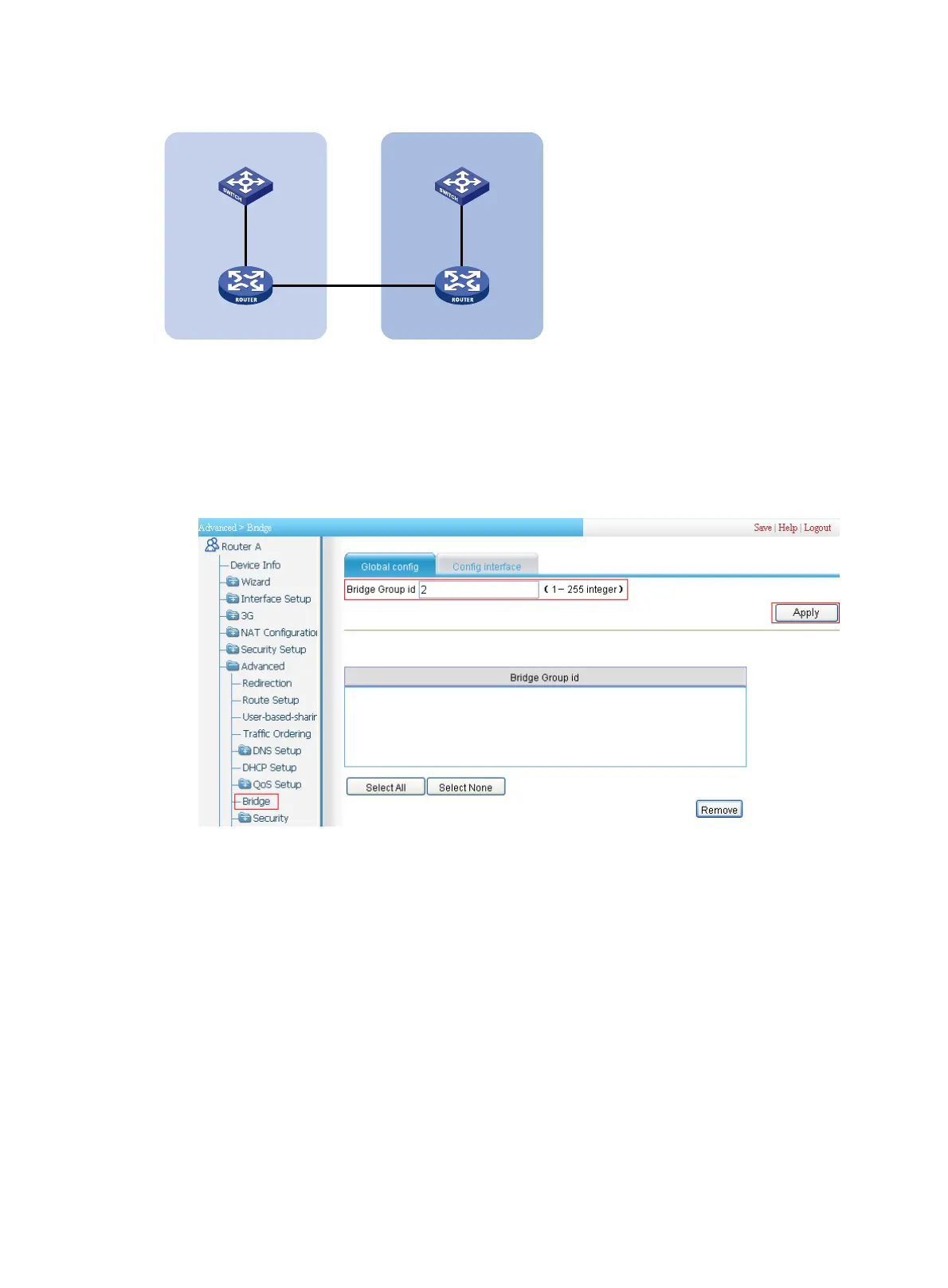

Figure 290 Network diagram
Configuration procedure
1. Configure Router A:
# Enable bridge set 2.
a. Select Advanced > Bridge from the navigation tree to enter the Global config page.
Figure 291 Enabling bridge set 2
a. Enter 2 as the bridge group ID.
b. Click Apply.
# Assign Ethernet 1/1 to bridge set 2, and enable VLAN transparency.
c. Click the Config interface tab.
Router A Router B
Eth1/1 Eth1/1
Eth1/1 Eth1/1
Trunk Trunk
Switch A
Office
area B
Office
area A
Switch B
Eth1/2 Eth1/2

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
