HP MSR SERIES User Manual

436
d. Enter the website address http://10.153.1.223/.
e. Click Apply.

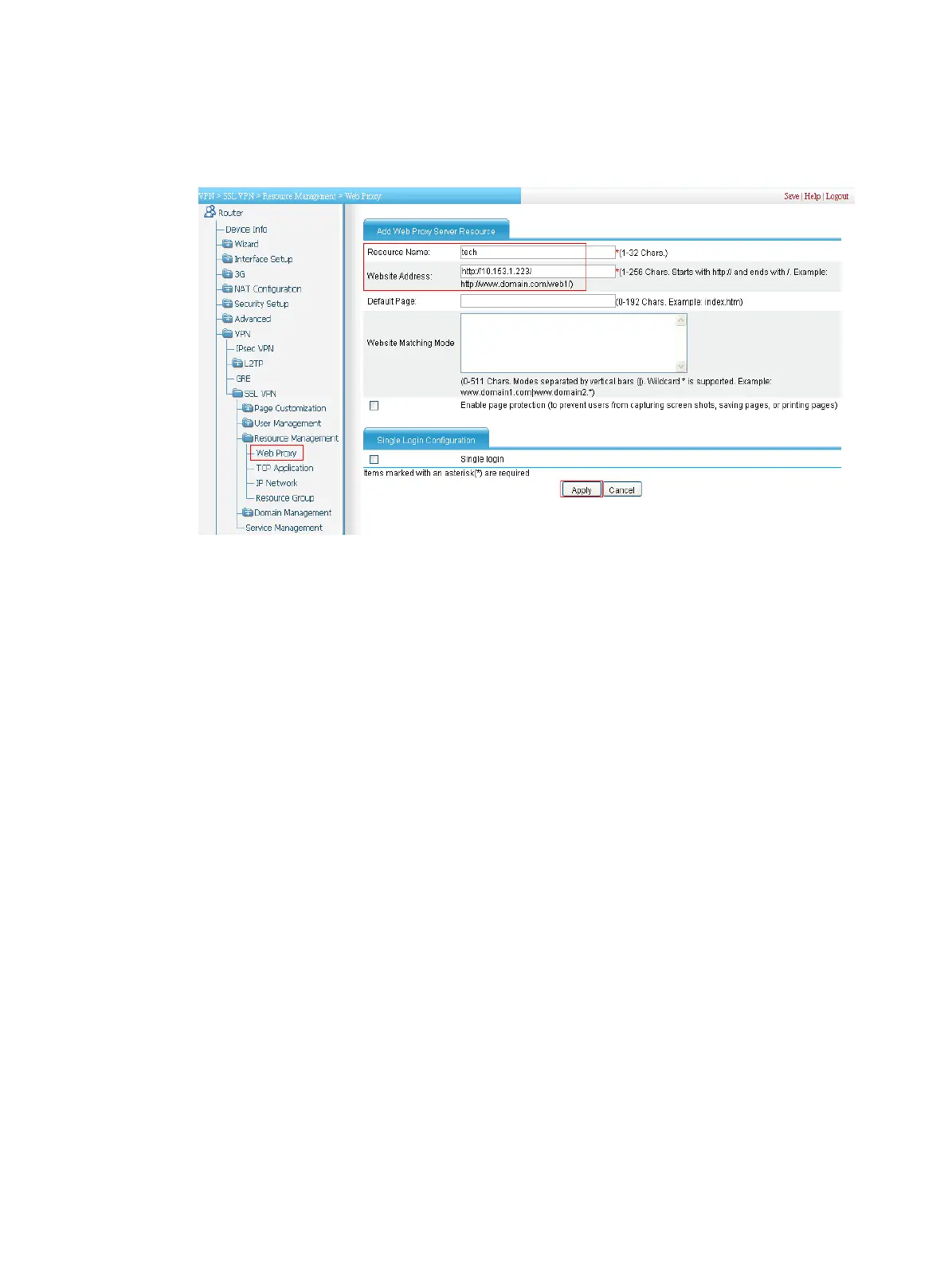

Figure 450 Configuring a Web proxy resource
2. Configure a resource named desktop for the desktop sharing service provided by host
10.153.70.120:
a. Select VPN > SSL VPN > Resource Management > TCP Application from the navigation tree.
b. Click the Desktop Sharing Service tab.
c. Click Add.
The desktop sharing service configuration page appears, as shown in Figure 451.
d. Enter the resource name desktop, enter th
e remote host address 10.153.70.120, set the remote
port for the server to 3389, enter the local host address 127.0.0.2, set the local port for the
service to 20000, and enter the command line mstsc /v 127.0.0.2:20000.
e. Click Apply.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
