HP MSR SERIES User Manual

437

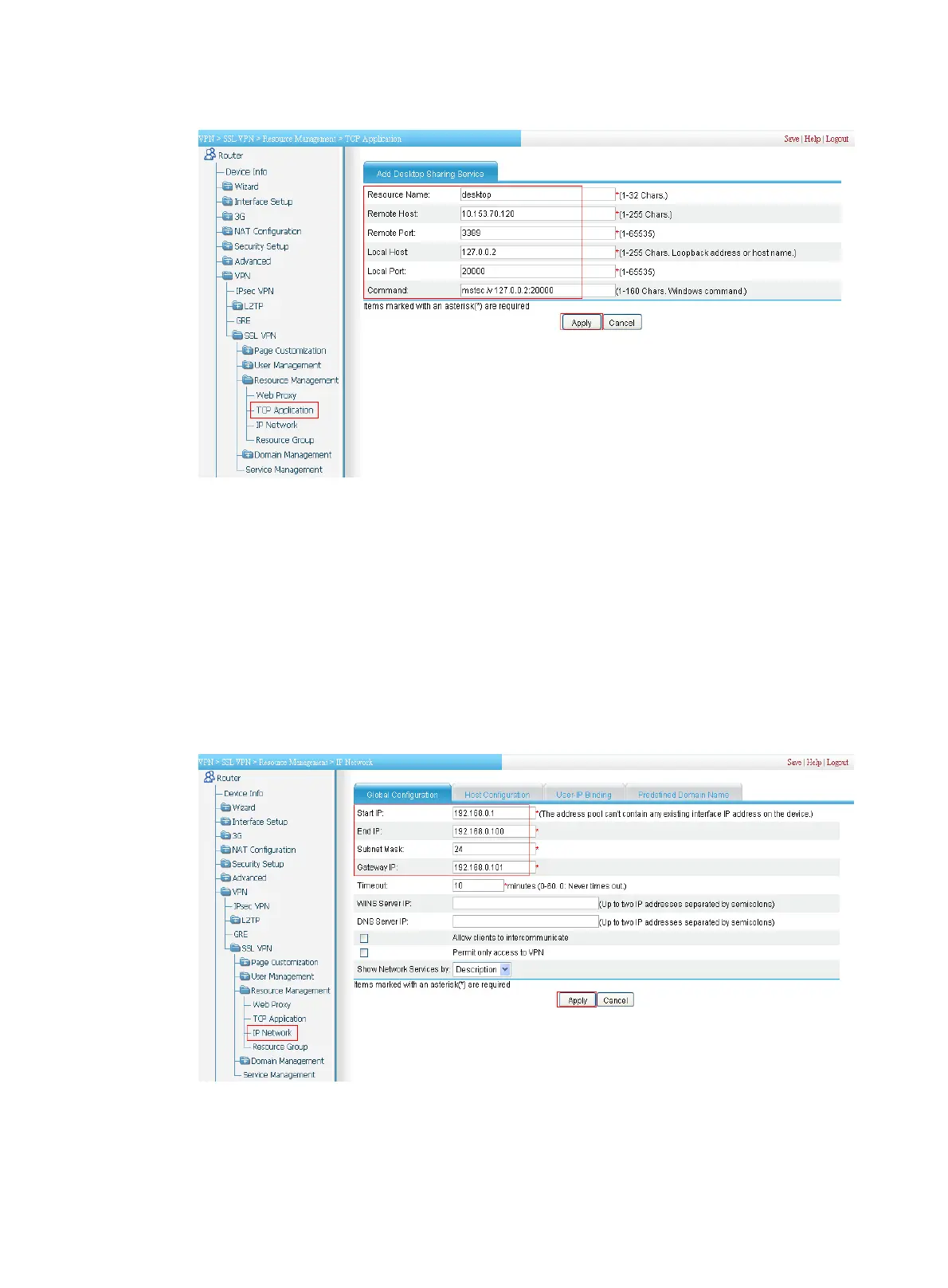

Figure 451 Configuring a desktop sharing service resource
3. Configure global parameters for IP network resources:
a. Select VPN > SSL VPN > Resource Management > IP Network from the navigation tree.
The Global Configuration tab appears, as shown in Figure 452.
b. Enter the start IP address 1
92.168.0.1.
c. Enter the end IP address 192.168.0.100.
d. Enter the subnet mask 24.
e. Enter the gateway IP address 192.168.0.101.
f. Click Apply.
Figure 452 Configuring global parameters for IP network resources
4. Configure a host resource named sec_srv for hosts in subnet 10.153.2.0/24 in IP network mode:
a. Select VPN > SSL VPN > Resource Management > IP Network from the navigation tree.
b. Click the Host Configuration tab.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
