HP MSR SERIES User Manual

614
2. Find the digital link VE1 5/0 in the list, click its corresponding icon to access the E1
parameters configuration page.

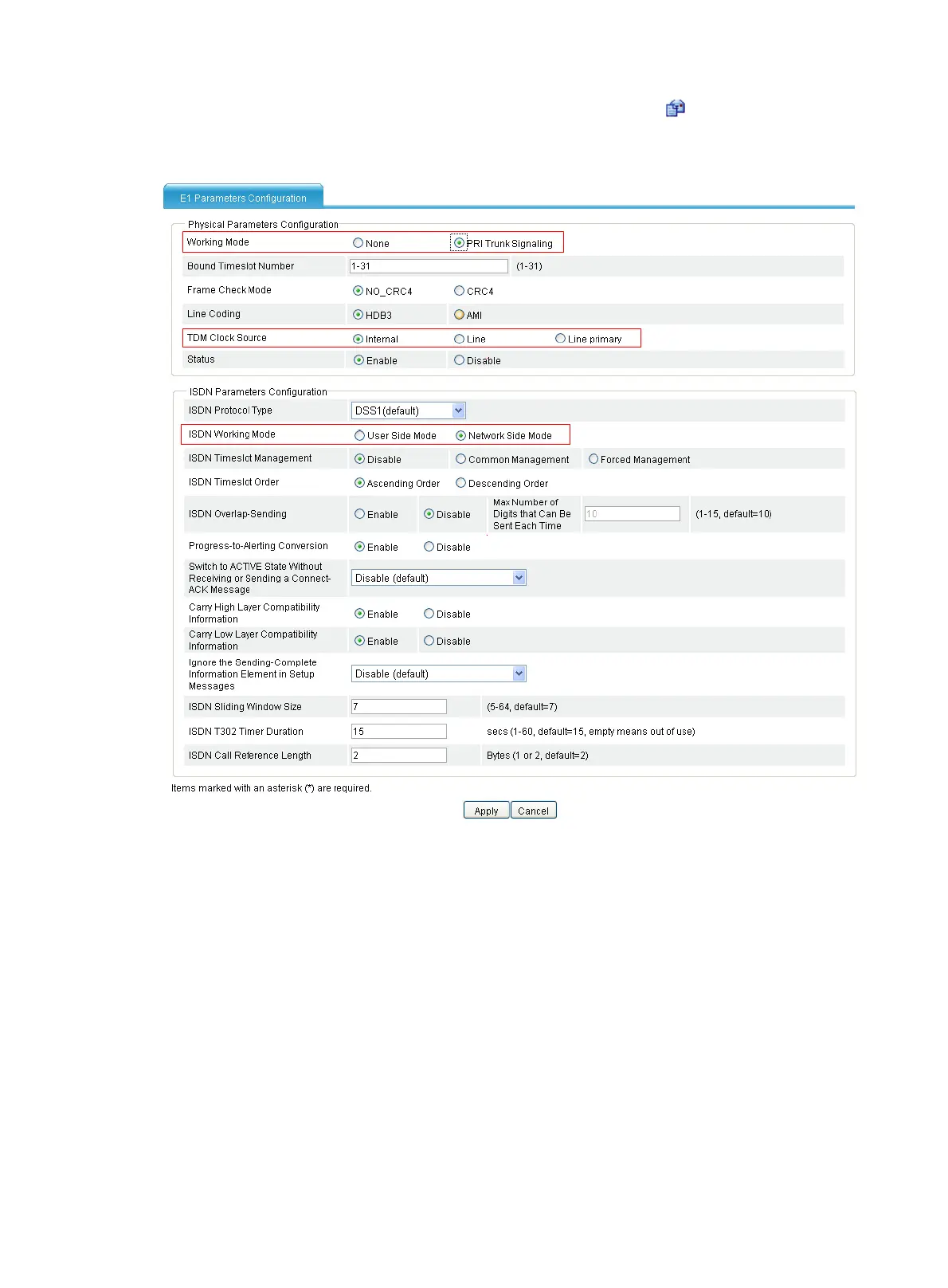

Figure 636 E1 parameters configuration page
3. Select PRI Trunk Signaling for Working Mode.
4. Select Internal for TDM Clock Source. (Internal is the default setting)
5. Select the Network Side Mode for ISDN Working Mode.
6. Click Apply.
# Add a local number: specify the number ID as 1000, the number as 10001234$, and the
bound line as 1/0 on the local number configuration page.
# Add a call route: specify the call route ID as 1001, the destination number as 20001234$, and
the trunk route line as 5/0:15 on the call route configuration page. In addition, you need to select
the Send All Digits of a Called Number option in the Called Number Sending Mode area when you
configure the advanced settings of this call route.
# Add a call route: specify the call route ID as 2000, the destination number as 20001234$, and
the destination address as 1.1.1.2 on the call route configuration page.
