HP MSR SERIES User Manual

615
Configuring Router B
Select Voice Management > Digital Link Management from the navigation tree to access the digital link
list page. Find the digital link VE1 5/0 in the list, click its corresponding icon to access the E1
parameters configuration page.

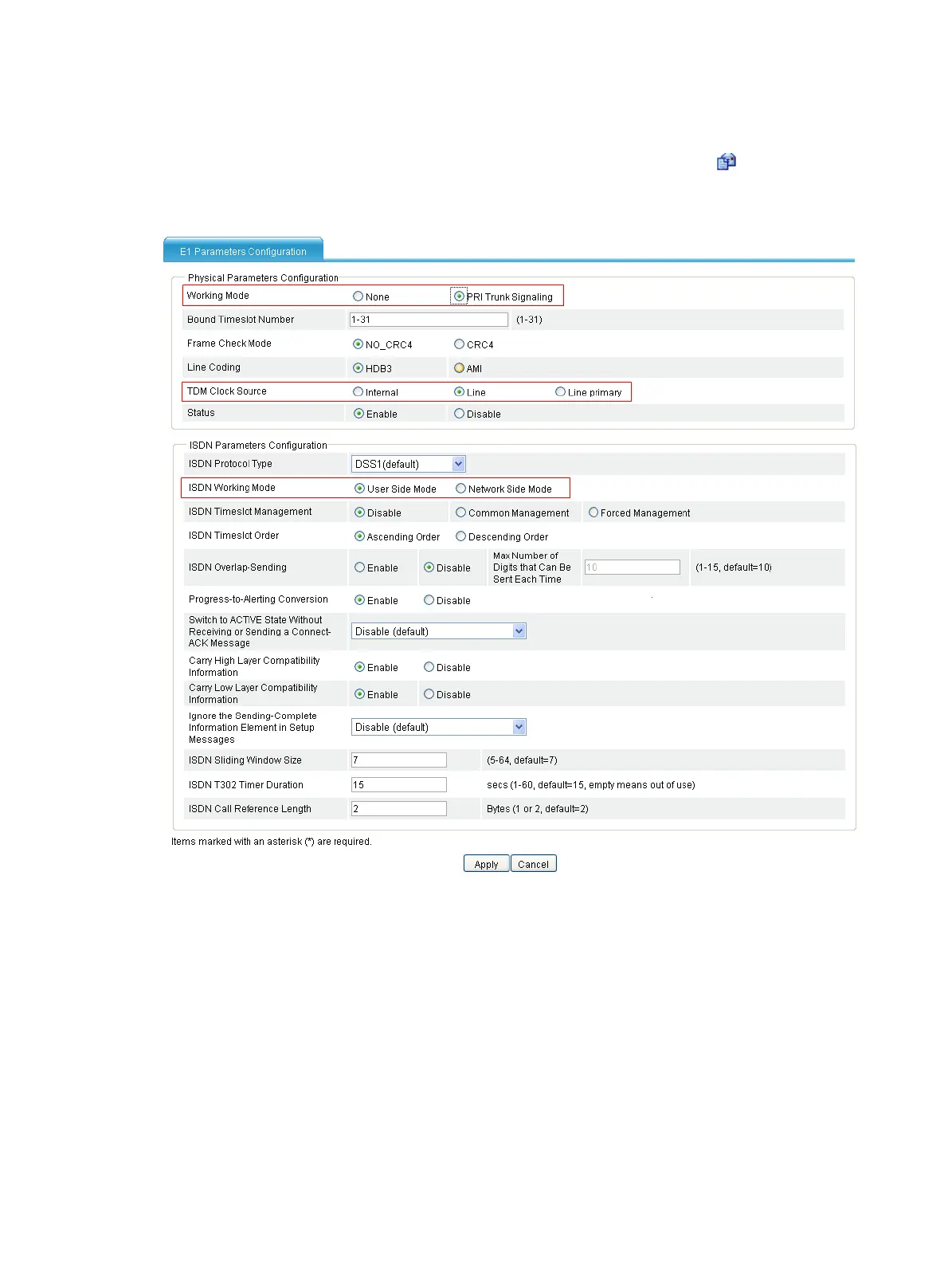

Figure 637 E1 parameters configuration page
• Select PRI Trunk Signaling for Working Mode.
• Select User Side Mode for ISDN Working Mode. (User Side Mode is the default setting)
• Select Line for TDM Clock Source.
• Click Apply.
# Add a local number: specify the number ID as 2000, the number as 20001234$, and the bound line
as 1/0 on the local number configuration page.
Configuring the system to first select VoIP entity
Configure Router A. Select Voice Management > Dial Plan > Number Match from the navigation tree to
access the number match configuration page.
