HP MSR SERIES User Manual

767

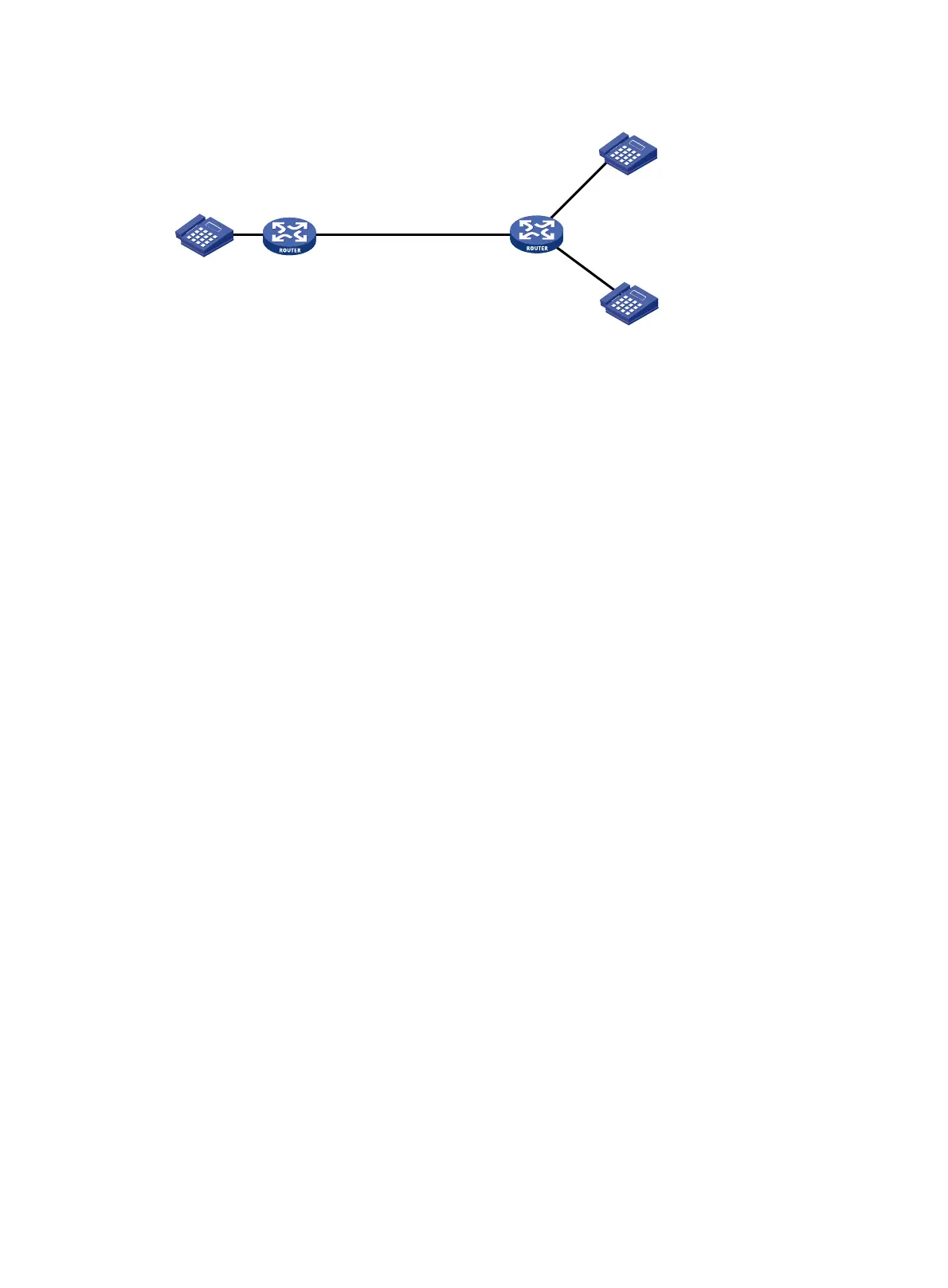

Figure 794 Network diagram
Configuration procedure
1. Configure Router A: See Configuring Router A.
2. Configure Router B:
# Configure the call node.
Select Voice Management > IVR Services > Advanced Settings from the navigation tree, select the
Configure Call Node tab, and click Add to access the following page.
Telephone A
50
Eth1/1
1.1.1.1/24
Router A Router B
100
Eth1/1
1.1.1.2/24
Telephone B2
Telephone B1
500

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
