Select Government Product Sales Dept from the navigation tree. Configure the submenu as shown

in Figure 842. The conf

iguration procedure is identical with the configuration of the telecom

product sales department submenu.

Figure 842 Government product sales department submenu

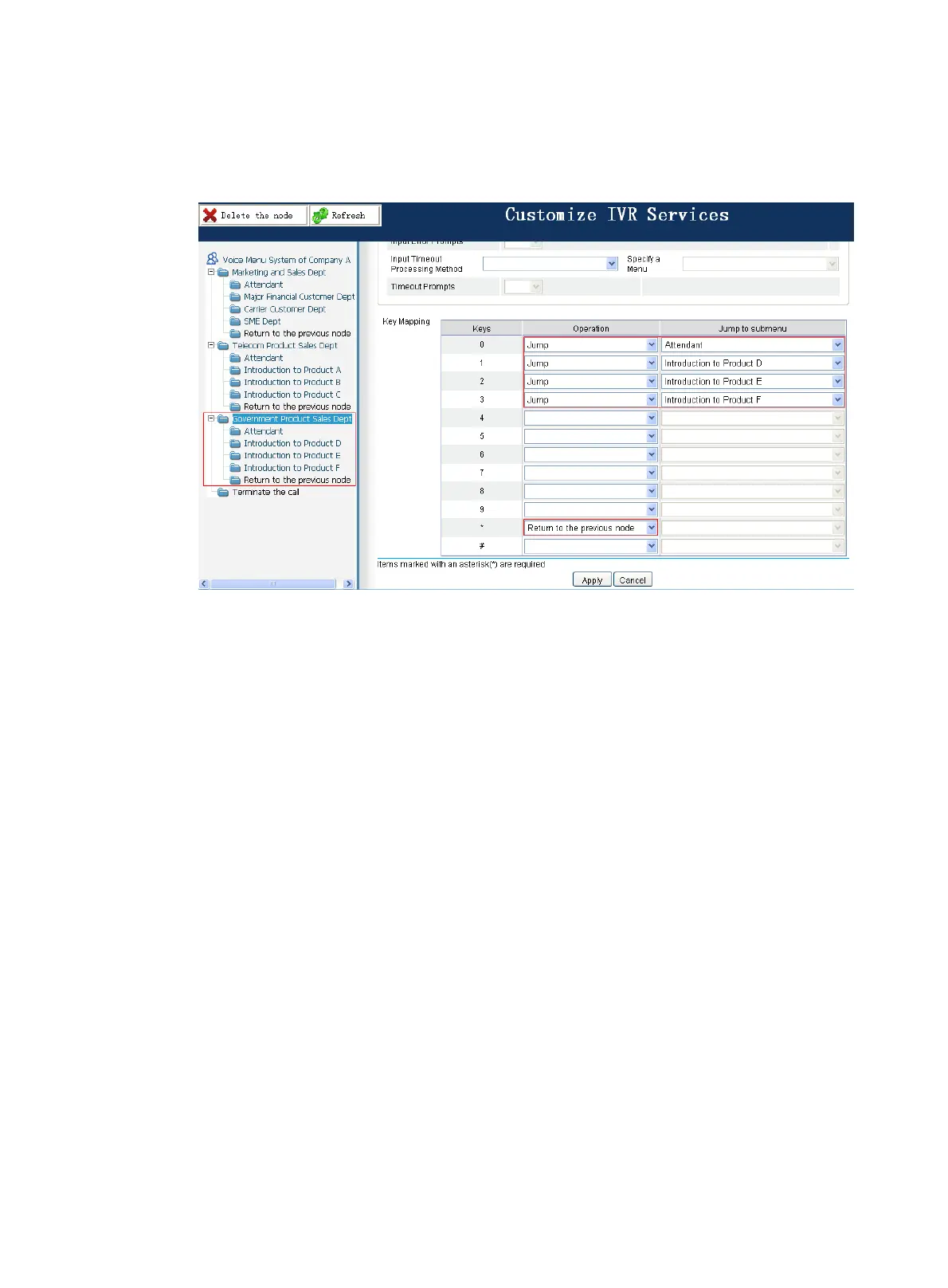

After all the configuration, the Customize IVR Services page is as shown in Figure 842.
