110

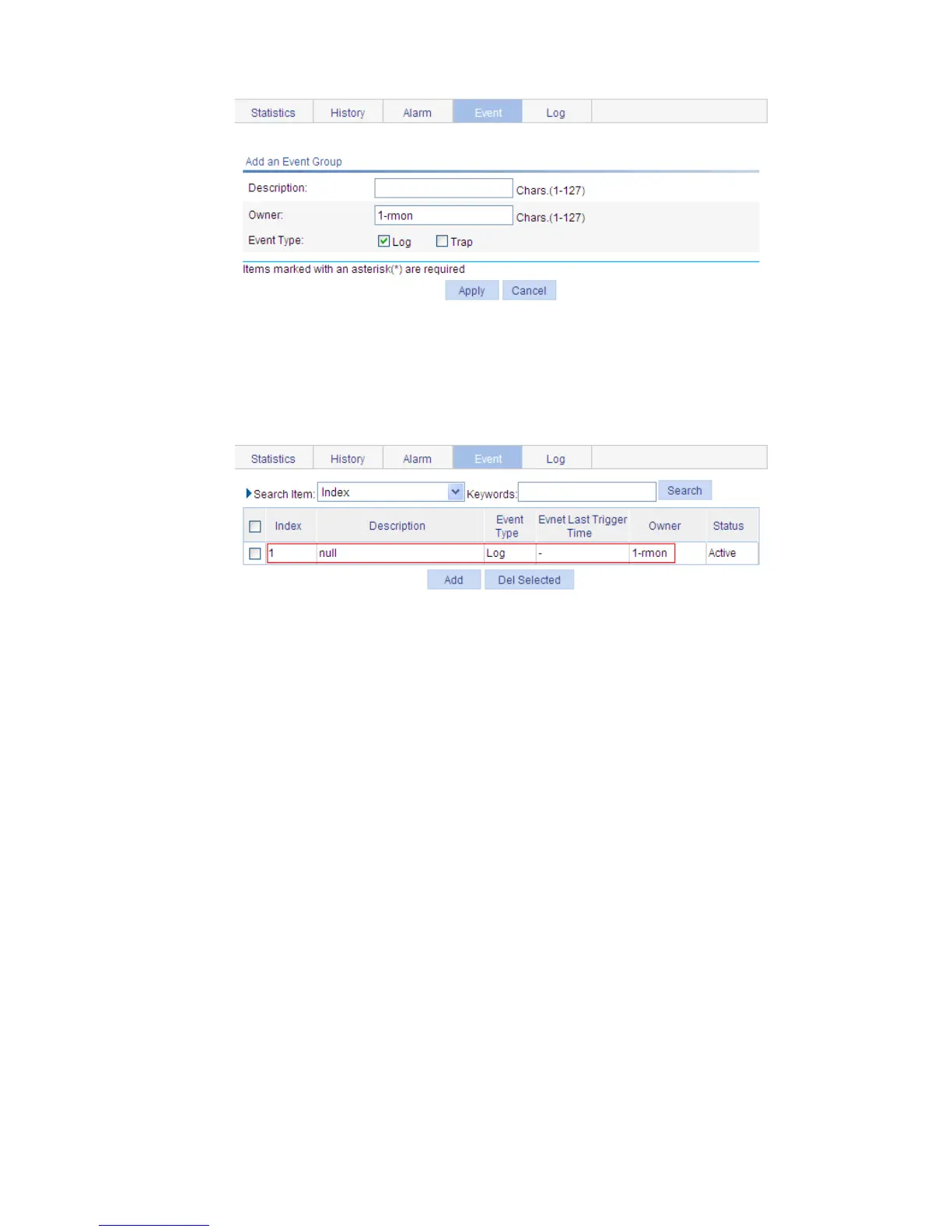

Figure 91 Configure an event group
Type 1-rmon in the text box of Owner.
Select the check box before Log.
Click Apply.
The page goes to the page displaying the event entry, and you can see that the entry index of the
new event is 1, as shown in Figure 92.
Figure 92 Display the index of a event entry
# Configure an alarm group to sample received bytes on Ethernet 1/0/1. When the received bytes
exceed the rising or falling threshold, logging is enabled.
Click the Alarm tab, click Add.
