The IP address of the NMS is 1.1.1.2/24.
The IP address of the VLAN interface on Switch is 1.1.1.1/24.
The NMS monitors the agent using SNMPv3. The agent reports errors or faults to the NMS.
Figure 110 Network diagram for SNMP configuration
Configuration procedure
1. Configure Agent
# Configuration IP addresses for the interfaces. (Procedure omitted)
# Enable SNMP.
Select Device > SNMP from the navigation tree to enter the Setup page.

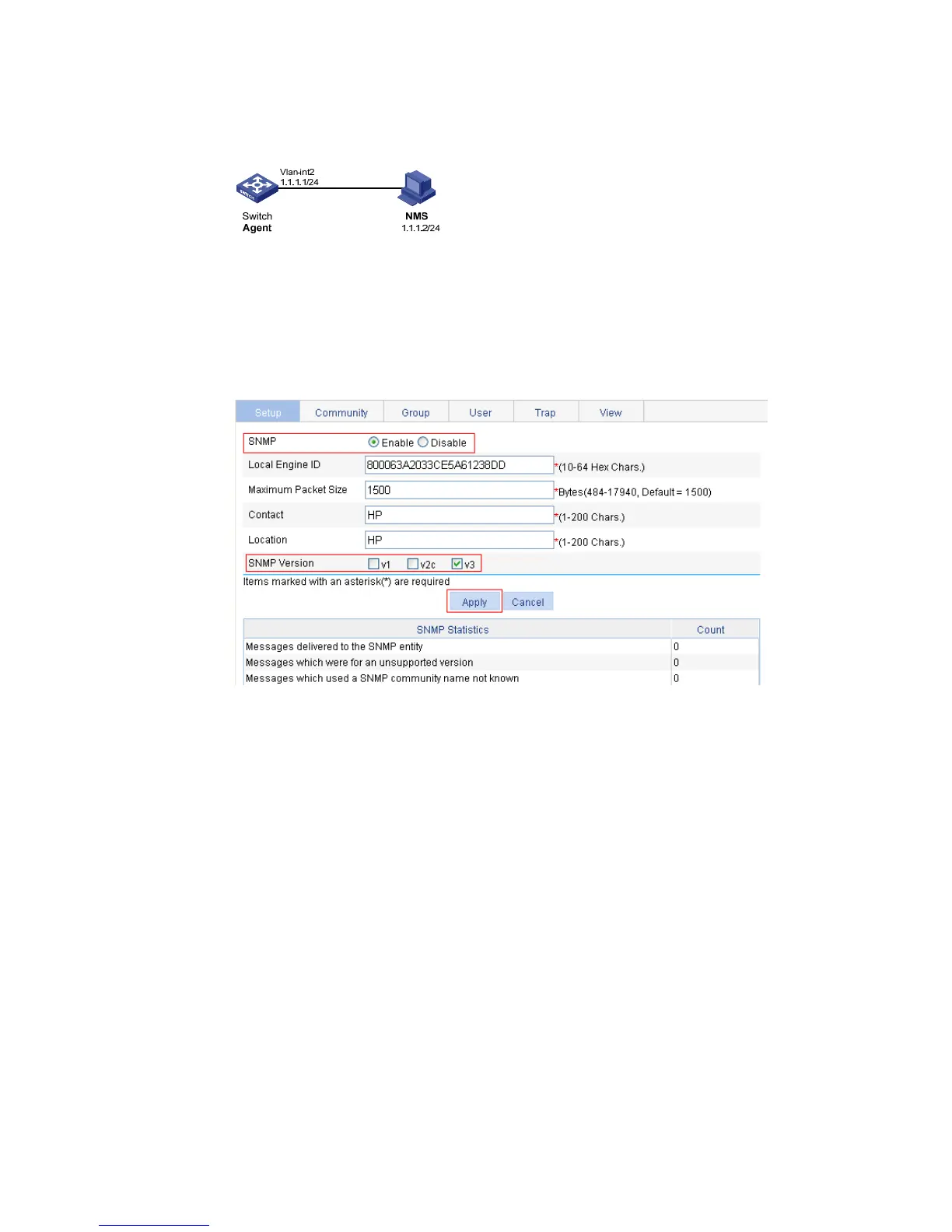

Figure 111 Enable SNMP
Select the Enable radio box.
Select the v3 radio box.
Click Apply.
# Configure an SNMP view.
Click the View tab and then click Add to enter the page as shown in Figure 112.
