127

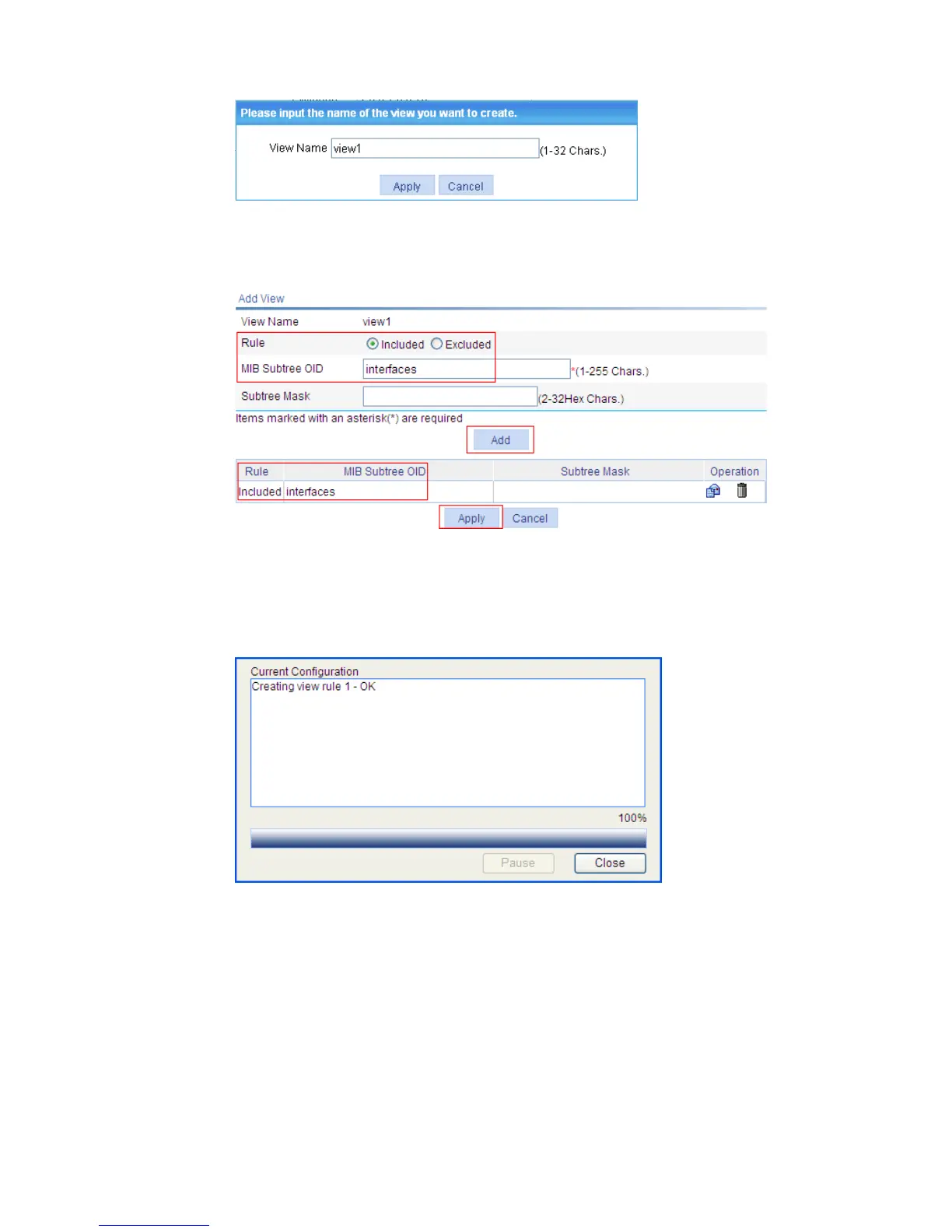

Figure 112 Create an SNMP view (1)
Type view1 in the text box.
Click Apply to enter the SNMP rule configuration page, as shown in Figure 113 .
Figure 113 Create an SNMP view (2)
Select the Included radio box.
Type the MIB subtree OID interfaces.
Click Add.
Click Apply. A configuration progress dialog box appears, as shown in Figure 114 .
Figure 114 Configuration progress dialog box
