HP V1910 Switch Series User Manual

129
 Type user1 in the text box of User Name.
 Select group1 from the Group Name drop-down box.
 Click Apply.
# Enable the agent to send SNMP traps.
 Click the Trap tab and enter the page as shown in Figure 117.

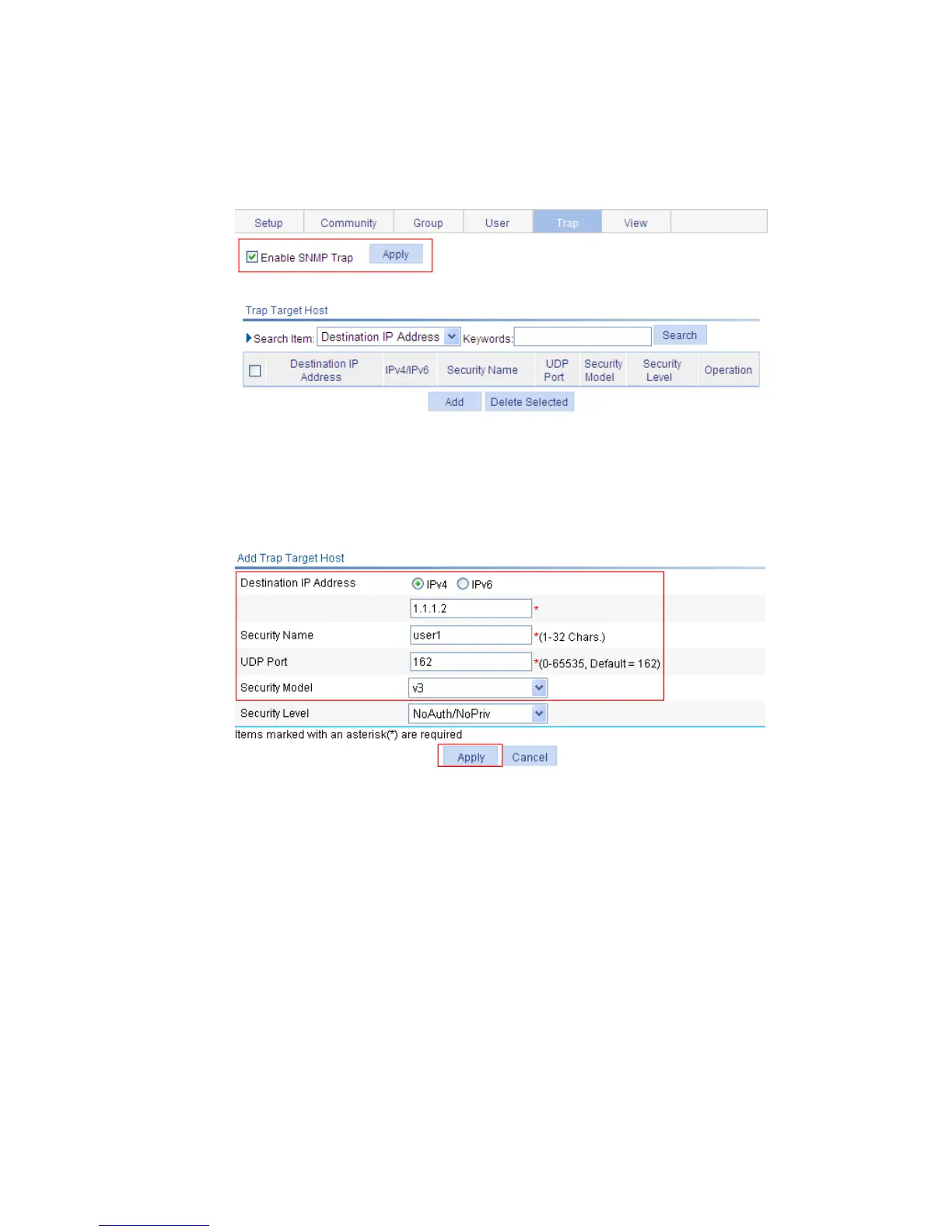

Figure 117 Enable the agent to send SNMP traps
 Select the Enable SNMP Trap check-box.
 Click Apply.
# Add target hosts of SNMP traps.
 Click Add to enter the page as shown in Figure 118.
Figure 118 Add target hosts of SNMP traps
 Select the destination IP address type as IPv4.
 Type the destination address 1.1.1.2.
 Type the user name user1.
 Select v3 from the Security Model drop-down box.
 Click Apply.
2. Configure NMS.
