157
# Configure GigabitEthernet 1/0/1 as a hybrid port.
Select Device > Port Management from the navigation tree, and click the Setup tab to enter the
page shown in Figure 141.

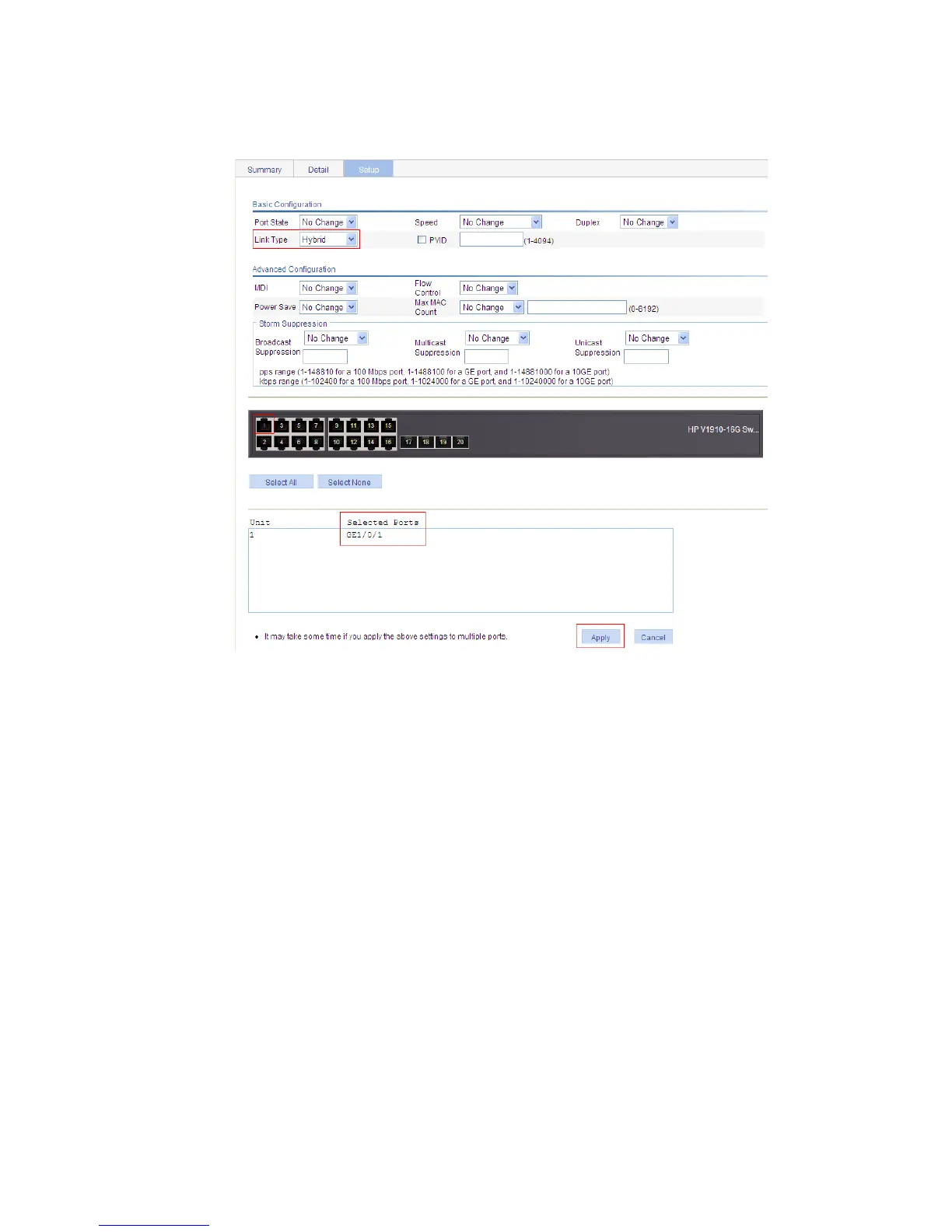

Figure 141 Configure GigabitEthernet 1/0/1 as a hybrid port
Select Hybrid from the Link Type drop-down list.
Select GigabitEthernet 1/0/1 from the chassis front panel.
Click Apply.
# Configure the voice VLAN function globally.
Select Network > Voice VLAN from the navigation tree and click the Setup tab to enter the page
shown in Figure 142.
