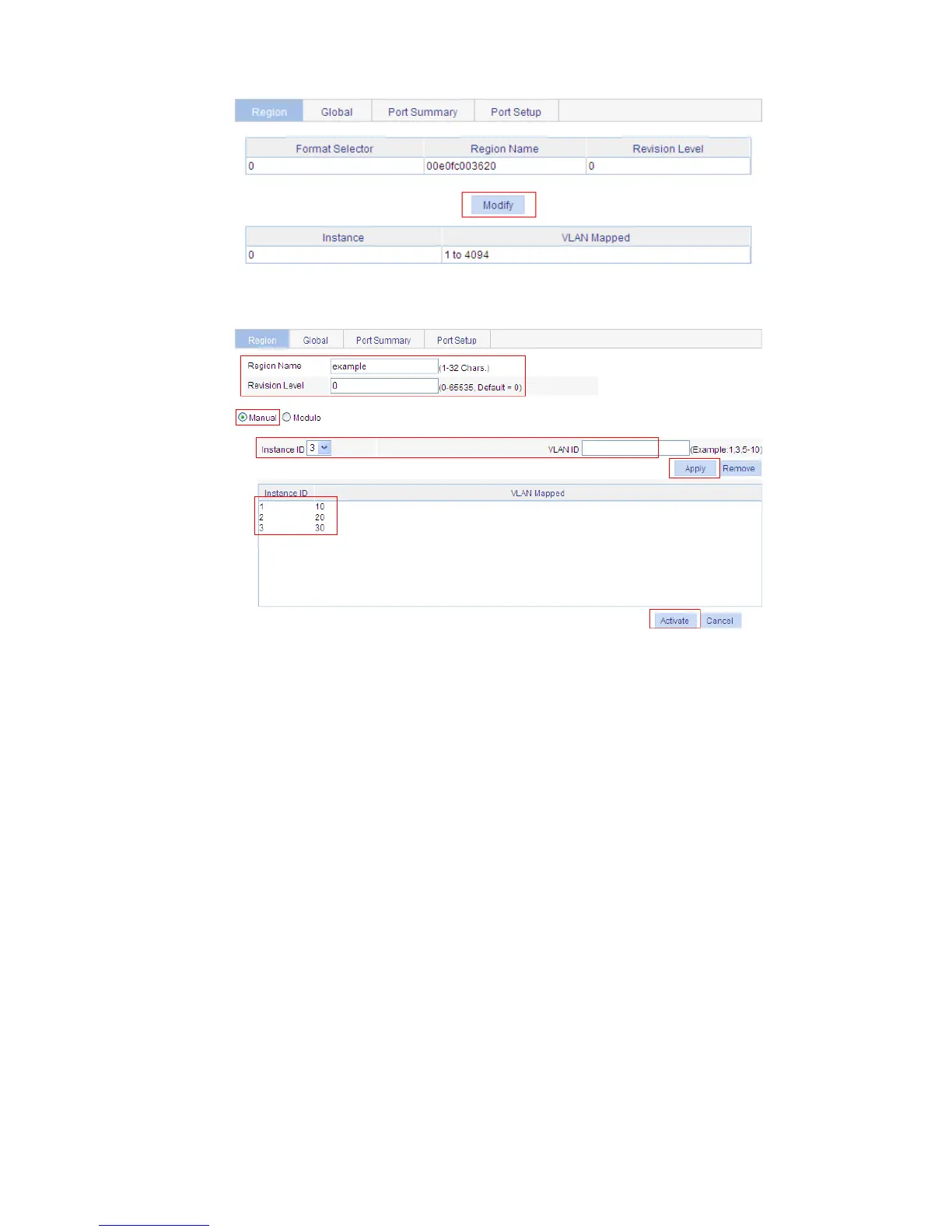

Figure 172 The Region tab
 Click Modify to enter the page shown in Figure 173.
Figure 173 Configure an MST region
 Type the region name example.
 Set the revision level to 0.
 Select the Manual option.
 Select 1 in the Instance ID drop-down list.
 Type the VLAN ID 10.
 Click Apply to map VLAN 10 to MSTI 1 and add the VLAN-to-MSTI mapping entry to the
VLAN-to-MSTI mapping list.
 Repeat the previous steps to map VLAN 20 to MSTI 2 and VLAN 30 to MSTI 3, and add the
VLAN-to-MSTI mapping entries to the VLAN-to-MSTI mapping list.
 Click Activate.
# Configure MSTP globally.
 Select Network > MSTP from the navigation tree, and click the Global tab to enter the page shown
in Figure 174.
